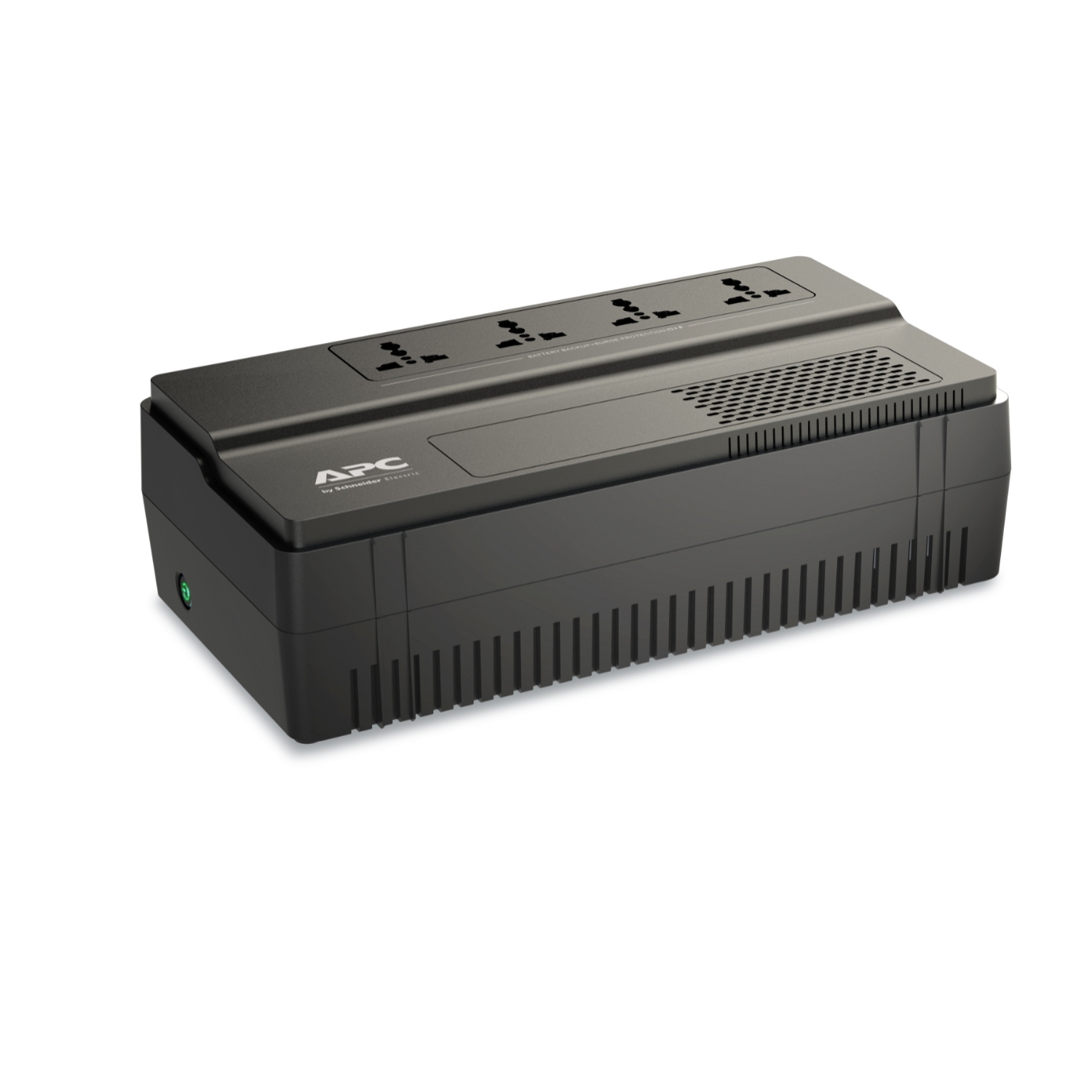

APC Easy UPS BV 800VA, AVR, Universal Outlet, 230V (BV800I-MSX)
KSh 11,500.00 (EX.Vat)
Key Features
Power and Performance
- Rated Power:
- 450W / 800VA – Supports critical low-power devices like routers, modems, and PCs.
- Input Voltage Range:
- 170V – 280V – Operates reliably during voltage fluctuations.
- Waveform Output:
- Stepped approximation to sinewave – Designed for basic electronics.
- Transfer Time:
- 6ms typical, 10ms maximum – Quick response to power interruptions.
- Voltage Regulation:
- Automatic Voltage Regulation (AVR) – Stabilizes voltage without using the battery, extending battery life.
Battery and Runtime
- Battery Type:
- Sealed lead-acid, maintenance-free – Reliable and long-lasting.
- Battery Life:
- 3–5 years – Depending on usage and environment.
- Runtime:
- Varies based on load; suitable for short outages.
- Surge Protection:
- Surge Energy Rating: 156 Joules – Protects connected devices from power surges.
Output and Connectivity
- Sockets:
- 4 universal outlets – Compatible with various plug types.
- Output Frequency:
- 50/60 Hz ±1 Hz (unsynchronized) – Keeps frequency stable for connected devices.
- Input Plug Type:
- BS1363A (British plug) – Common for UK and similar regions.
Environmental Features
- Operating Temperature:
- 0°C to 40°C – Works in various climates.
- Humidity:
- 0% to 90% (non-condensing) – Suitable for high-humidity environments.
- Noise Level:
- 40 dBA – Quiet operation, ideal for home or office use.
Design and Usability
- Compact Dimensions:
- 9.25 cm (H) x 16.05 cm (W) x 30.5 cm (D) – Small and portable design.
- Weight:
- 5.3 kg – Easy to move and install.
Certifications and Standards
- Certifications:
- EN/IEC 62040-1:2019/A11:2021
- EN/IEC 62040-2:2018 – Ensures high quality and safety compliance.
Audible Alerts
- Alarms:
- Audible notifications for battery mode, low battery, and overload conditions.
Additional Features
- Automatic Reset:
- Restores power automatically after mains power is restored.
This feature set makes the APC Easy UPS BV800I-MSX ideal for small-scale power backup needs in homes, small offices, and low-power setups.
APC Easy UPS BV 800VA, AVR, Universal Outlet, 230V (BV800I-MSX)
Overview
- Model: APC Easy UPS BV800I-MSX
- Type: Line-Interactive UPS with Automatic Voltage Regulation (AVR)
- Rated Power: 450W / 800VA
- Sockets: 4 universal outlets
- Input Voltage: 230V
- Battery Type: Lead-acid battery (sealed, maintenance-free)
- Lead Time: Usually in stock
Power and Electrical Specifications
Input
- Voltage: 230V AC
- Frequency: 50/60 Hz ±5 Hz (auto-sensing)
- Input Voltage Range: 170V – 280V
- Connector Type: BS1363A (British plug)
- Cable Length: 1.5m
Output
- Voltage: 230V AC
- Frequency: 50/60 Hz ±1 Hz (unsynchronized)
- Maximum Configurable Power:
- Wattage: 450W
- VA Rating: 800VA
- Wave Type: Stepped approximation to sinewave (suitable for basic electronics)
- Transfer Time: 6ms typical, 10ms maximum
- Receptacles: 4 universal outlets
Battery & Runtime
- Battery Type: Sealed lead-acid
- Battery Life: 3–5 years
- Runtime:
- Load-dependent, suitable for short power outages.
- Battery Recharge Time: Not specified; typical recharge times for similar models range between 6-8 hours.
Design and Build
- Dimensions:
- Height: 9.25 cm
- Width: 16.05 cm
- Depth: 30.5 cm
- Weight: 5.3 kg
- Color: Black
- Mounting: Floor-mounted (non-rack-mountable)
Environmental Specifications
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 50°C
- Humidity: 0% to 90% (non-condensing) for both operation and storage
- Operating Altitude: Up to 6,667 ft (2,000 m)
- Storage Altitude: Up to 15,240 m (50,000 ft)
- Noise Level: 40 dBA
Surge Protection
- Surge Energy Rating: 156 Joules – Protects connected devices from voltage spikes.
- IP Degree of Protection: IP20 – Basic protection against solid objects >12.5mm, no water resistance.
Communications and Alerts
- Alarm Notifications:
- Audible alarms for battery mode.
- Distinct alarms for low battery and overload conditions.
Certifications and Standards
- Product Certifications:
- EN/IEC 62040-1:2019/A11:2021
- EN/IEC 62040-2:2006/AC:2006
- EN/IEC 62040-2:2018
Packing Information
- Package Dimensions:
- Height: 23.7 cm
- Width: 37.3 cm
- Depth: 14.3 cm
- Package Weight: 5.6 kg
Key Features
- Automatic Voltage Regulation (AVR): Protects sensitive devices by stabilizing voltage during fluctuations.
- Compact Design: Small footprint, ideal for tight spaces.
- Universal Outlets: Compatible with a variety of plug types.
- Quiet Operation: 40 dBA noise level, suitable for home or office environments.
- Audible Alerts: Clear alarms for power and battery issues.
