APC SMART UPS 1000VA LCD 230V WITH SMARTCONNECT(SMC1000IC)

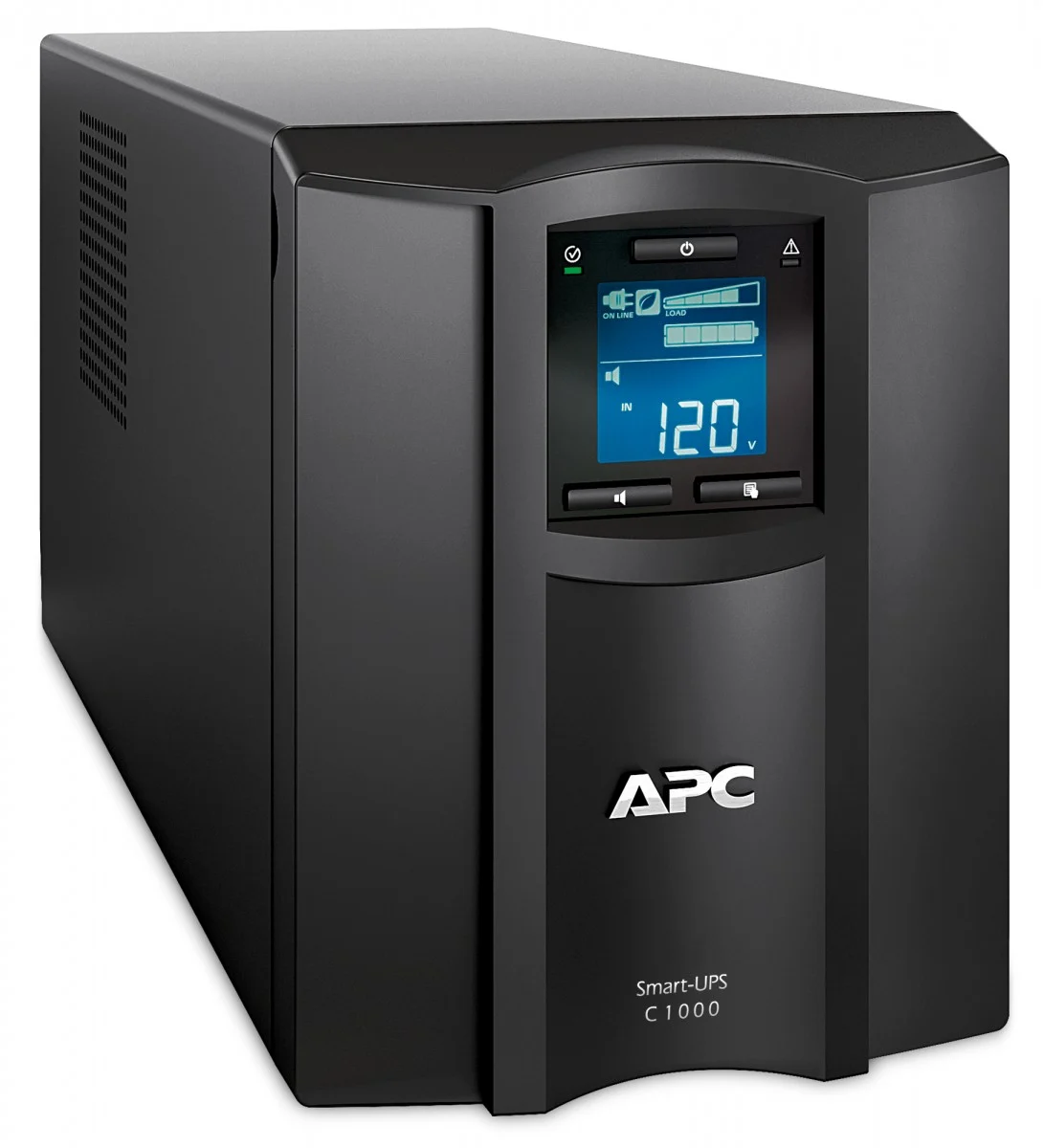

APC Smart-UPS C 1000VA LCD 230V with SmartConnect (SMC1000IC)

Overview

The APC Smart-UPS C 1000VA (SMC1000IC) is a line-interactive UPS designed for reliable power backup and surge protection. It features a 600W/1000VA capacity, SmartConnect for remote monitoring, AVR for voltage stabilization, and a graphical LCD for comprehensive status updates. Ideal for servers, point-of-sale systems, routers, switches, and other critical network devices.

Technical Features

Power and Performance

1. Rated Power:
   • 600W / 1000VA – Ideal for powering critical devices with medium loads.
2. Waveform Output:
   • Pure sine wave – Suitable for sensitive equipment like servers and high-end electronics.
3. Voltage Regulation:
   • Automatic Voltage Regulation (AVR) – Maintains stable voltage during fluctuations without relying on the battery.
4. Transfer Time:
   • 6ms typical, 10ms maximum – Ensures uninterrupted power during switchovers.
5. Harmonic Distortion:
   • Less than 5% – Provides clean power for connected devices.

Input Specifications

6. Voltage Range:
   • 170V to 300V (adjustable: 180V to 287V) – Wide input range to handle power irregularities.
7. Frequency:
   • 50/60 Hz ±3 Hz (auto-sensing) – Adapts to different power grid frequencies.

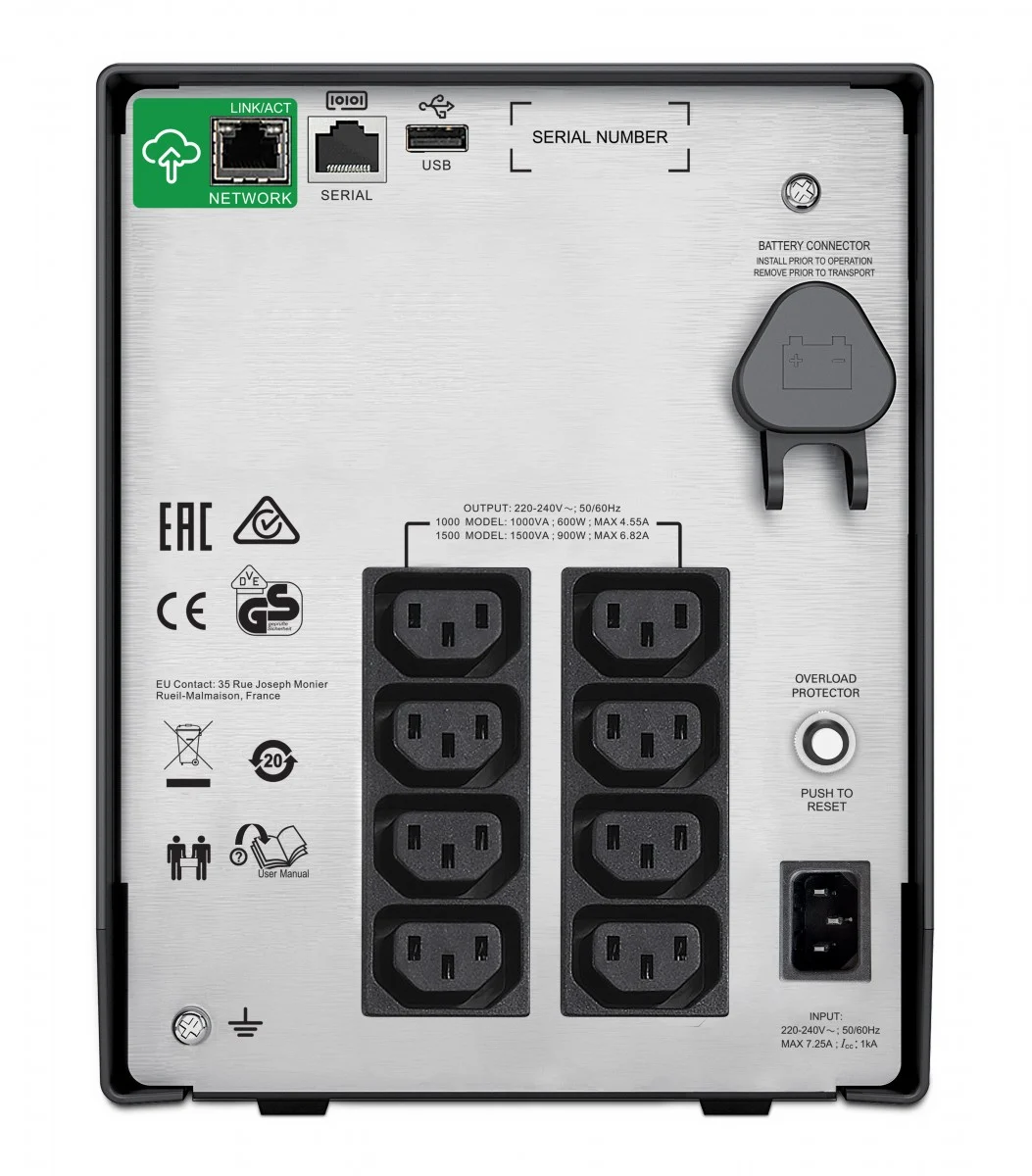

8. Input Connection:
   • IEC 320 C14 – Universal input connection.

Output Specifications

9. Output Voltage:
   • 230V (adjustable to 220V or 240V) – Matches regional power requirements.
10. Outlets:
    • 8 IEC 60320 C13 – Supports multiple devices.

Battery and Runtime

11. Battery Type:
    • Lead-acid, sealed, maintenance-free.
12. Battery Voltage:
    • 24V, 9Ah capacity – Provides sufficient power for short outages.
13. Battery Life:
    • 3–5 years – Typical lifespan under proper conditions.
14. Recharge Time:
    • 3 hours – Quick battery recovery after discharge.
15. Replacement Battery:
    • APCRBC142 – Easy to replace and readily available.

Design and Usability

16. Dimensions:
    • Height: 21.9 cm
    • Width: 17.1 cm
    • Depth: 43.9 cm
17. Weight:
    • 17.27 kg – Sturdy yet compact for floor or desktop placement.
18. Color:
    • Black – Sleek and professional design.
19. Mounting:
    • Floor-mountable, not rack-mountable.

Monitoring and Management

20. LCD Display:
    • Multifunction graphical LCD – Displays detailed status and control information.
21. SmartConnect Port:
    • Cloud-enabled remote monitoring – Easily monitor power conditions remotely via Ethernet.
22. USB and Serial Ports:
    • Allows local monitoring and configuration.
23. Alarm Notifications:
    • Audible alerts for battery mode, low battery, and configurable delays.

Environmental Features

24. Operating Conditions:
    • Temperature: 0°C to 40°C.
    • Humidity: 0% to 95% (non-condensing).
    • Altitude: Up to 10,000 ft (3,048 m).
25. Storage Conditions:
    • Temperature: -15°C to 45°C.
    • Altitude: Up to 15,240 m (50,000 ft).

Surge Protection and Filtering

26. Surge Energy Rating:
    • 455 Joules – Protects connected devices from power spikes.
27. Noise Filtering:
    • Full-time multi-pole filtering with 0.3% IEEE surge let-through and zero clamping response time.

Certifications and Standards

28. Certifications:
    • GOST, VDE, UK PSTI.
29. Standards Compliance:
    • EN/IEC 62040-1:2019/A11:2021.
    • EN/IEC 62040-2:2018.

Package Information

30. Package Dimensions:
    • Height: 37.6 cm.
    • Width: 59.5 cm.
    • Depth: 32.8 cm.
31. Package Weight:
    • 19.55 kg.

Key Features Summary

• Reliable Power Backup: Pure sine wave output ensures compatibility with sensitive devices.
• Advanced Monitoring: SmartConnect provides remote, cloud-based monitoring.
• Fast Battery Recharge: 3-hour recharge for minimal downtime.
• Durable Design: High-quality materials and long battery life (3-5 years).
• Eco-Friendly Operation: High efficiency reduces heat dissipation (100 BTU/hr) and energy usage.

The APC Smart-UPS C 1000VA LCD (SMC1000IC) is an excellent solution for small to medium-sized network setups, ensuring efficient power protection and remote management capabilities.

Summary Table of Key Features

Feature Category	Details
Capacity	600W / 1000VA
Output Waveform	Pure sine wave
Voltage Regulation	Automatic Voltage Regulation (AVR) – Stabilizes voltage without draining the battery
Transfer Time	6ms typical, 10ms maximum
Harmonic Distortion	Less than 5%
Input Voltage Range	170V – 300V adjustable (default: 180V – 287V)
Frequency	50/60 Hz ± 3 Hz auto-sensing
Input Connection Type	IEC 320 C14
Output Voltage	230V (adjustable to 220V or 240V)
Output Connections	8x IEC 60320 C13 outlets
Battery Type	Maintenance-free, sealed lead-acid
Battery Life	3–5 years
Battery Recharge Time	3 hours
Replacement Battery	APCRBC142
Monitoring & Display	Multifunction graphical LCD, SmartConnect Ethernet port for cloud-based remote monitoring
Communication Ports	USB and serial ports
Alarms	Audible alarms for battery mode, low battery, and overload
Surge Protection	455 Joules
Noise Filtering	Full-time multi-pole noise filtering
Noise Level	41 dBA
Heat Dissipation	100 BTU/hr
Dimensions (H x W x D)	21.9 cm x 17.1 cm x 43.9 cm
Weight	17.27 kg
Operating Temperature	0°C to 40°C
Certifications	GOST, VDE, UK PSTI
Compliance Standards	EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2018



Applications

The APC Smart-UPS C 1000VA LCD is a versatile and reliable power backup solution, designed to meet the needs of various environments and applications. Here are its key applications:

1. IT Infrastructure

• Servers: Provides uninterrupted power supply for small to medium-sized servers, ensuring business continuity.
• Routers and Switches: Protects essential networking devices from power disruptions, maintaining internet and network connectivity.
• Hubs and Modems: Ensures consistent operation for critical network components.

2. Office and Business Equipment

• Point-of-Sale Systems: Supports cash registers, barcode scanners, and receipt printers, ideal for retail and hospitality businesses.
• Desktop Workstations: Prevents data loss during power outages for computers and peripherals.
• Printers and Scanners: Ensures seamless operation of office devices during power fluctuations.

3. Home Office

• Home Networking: Keeps home routers, modems, and smart hubs operational during outages.
• Workstations: Reliable power for personal computers, monitors, and essential office equipment used in remote work setups.

4. Surveillance Systems

• CCTV and Security Systems: Provides backup power to security cameras, DVRs, and alarm systems, ensuring 24/7 monitoring.

5. Healthcare and Laboratories

• Medical Equipment: Protects sensitive lab equipment, testing devices, and monitoring systems from sudden power loss.
  (Note: Not suitable for life-support devices.)

6. Small Data Centers

• Ideal for edge computing or small-scale server rooms, ensuring consistent power supply to critical systems.

7. Industrial and Manufacturing Environments

• Control Panels: Ensures smooth operation of industrial control systems during power fluctuations.
• Automation Systems: Protects programmable logic controllers (PLCs) and other automation devices.

Why It’s Suitable

• Pure Sine Wave Output: Ensures compatibility with sensitive and high-performance devices.
• Remote Management: SmartConnect feature allows real-time monitoring and power management from anywhere.
• Compact Design: Saves space while offering high efficiency and reliability.

This UPS is perfect for scenarios that require a dependable power backup solution with monitoring capabilities, making it a valuable asset in professional, home, and industrial environments.
