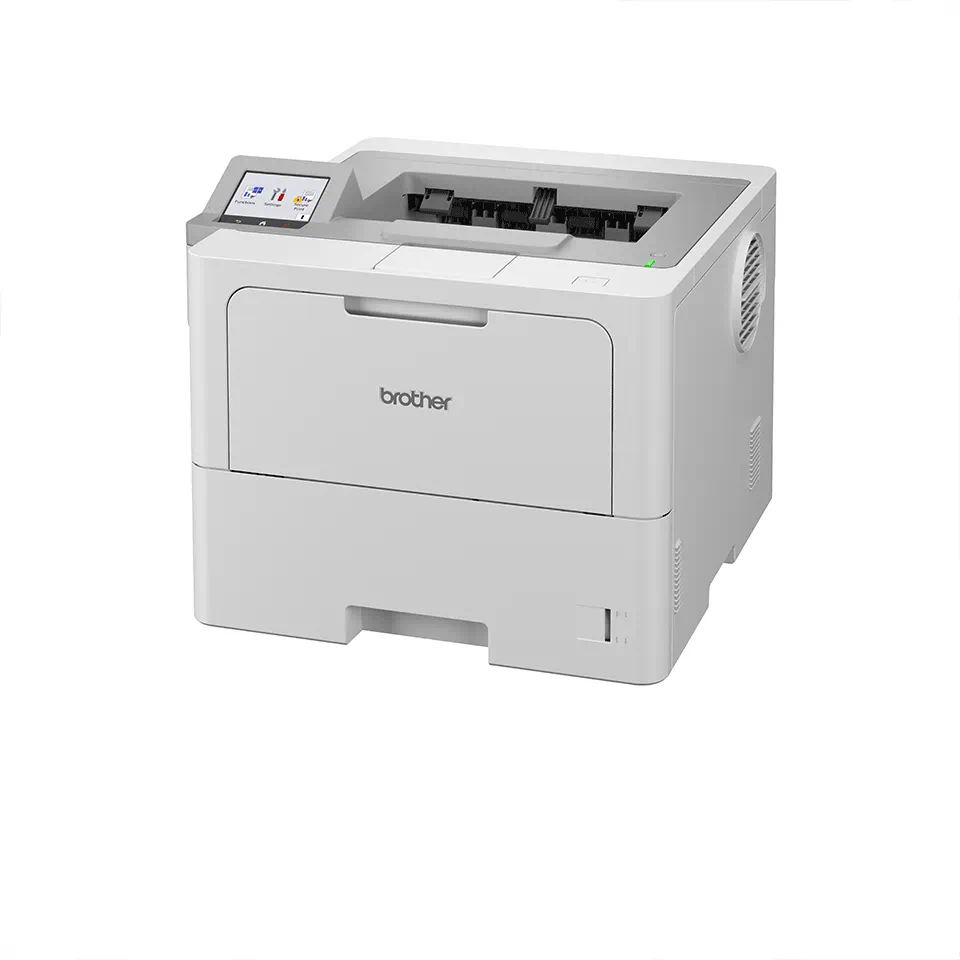

Brother HL-L6410DN Printer

General Overview

• Model Name: Brother HL-L6410DN
• Printer Type: Monochrome Laser Printer
• Ideal For: High-performance printing in large office environments requiring high-speed, high-volume output, and robust security features.

Performance Specifications

• Processor: 1.2 GHz Dual-Core Processor
• Memory: 1GB
• First Print Out Time (FPOT): As fast as 6.7 seconds
• Print Speed: Up to 50 pages per minute (ppm)
• Maximum Monthly Duty Cycle: 160,000 pages
• Recommended Monthly Print Volume: Up to 10,000 pages

Print Features

• Print Resolution: Up to 1,200 x 1,200 dpi
• Supported Page Description Languages:
  • PCL6
  • BR-Script3 (PostScript3 Emulation)
  • IBM Proprinter XL
  • Epson FX-850
  • PDF Version 1.7

Paper Handling

• Standard Input Capacity:
  • 520-sheet paper tray (Standard Tray)
  • 100-sheet multipurpose bypass tray for specialty media
• Output Capacity: 250 sheets (Face Down)
• Supported Media Types: Plain Paper, Recycled Paper, Bond, Labels, Envelopes
• Supported Paper Sizes: A4, Letter, Legal, Executive, A5, A6, Envelopes (DL, Com-10, Monarch), Custom Sizes
• Paper Weight Supported:
  • Tray: 60-120 gsm
  • Bypass Tray: 60-220 gsm

Duplex and Connectivity

• Automatic Duplex Printing: Built-in automatic two-sided printing
• Connectivity Options:
  • Gigabit Ethernet (10Base-T/100Base-TX/1000Base-T)
  • Hi-Speed USB 2.0
  • Optional Wireless LAN (802.11 b/g/n)
  • Near Field Communication (NFC) for secure authentication and mobile printing

Toner and Supplies

• In-Box Toner: 25,000-page yield toner (based on ISO/IEC 19752)
• Drum Unit: DR-620 (Up to 30,000 pages)

Supported Operating Systems

• Windows: Windows 11/10/8.1/7, Windows Server 2012/2016/2019/2022
• MacOS: macOS v10.14 or later
• Linux: Compatible with various distributions

Security Features

• NFC Authentication: Use NFC-enabled mobile devices for secure authentication and easy access to printer functions.
• Network Security: SNMPv3, IPsec, TLS/SSL protocols to ensure secure network communication.
• Secure Print: Protect sensitive documents with PIN-based printing.

Physical Specifications

• Dimensions (WxDxH): 410 mm x 398.5 mm x 302.5 mm
• Weight: 11.2 kg

Power and Environmental

• Power Consumption:
  • Printing: 670W
  • Ready Mode: 60W
  • Sleep Mode: 5.5W
• Energy Certification: ENERGY STAR certified
• Noise Level: Printing at 53 dB(A)

Additional Features

• High-Speed Printing: Print up to 50 ppm for high-volume tasks.
• Large Paper Capacity: 520-sheet input capacity plus 100-sheet bypass tray for various media types.
• NFC Authentication: NFC support for easy, secure printing from mobile devices.
• High-Yield Toner: Includes a 25,000-page toner for extended printing without frequent cartridge replacements.
• Automatic Duplex Printing: Save paper with double-sided printing.
• Large Monthly Duty Cycle: Designed for demanding environments with a 160,000-page maximum monthly duty cycle.

Warranty

• Standard Warranty: 1-Year Limited Warranty

In the Box

• Brother HL-L6410DN Printer
• Starter Toner Cartridge (25,000 pages)
• Drum Unit
• Power Cable
• Quick Setup Guide

This printer is perfect for large office environments where high-volume printing, security, and efficiency are key. It features fast speeds, large toner yields, and advanced NFC authentication for secure mobile printing.
