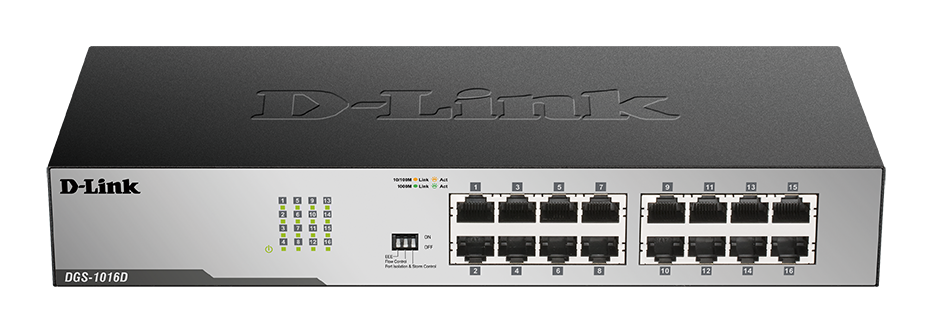

D-Link DGS-1016D/B 16-port 10/100/1000Base-T Unmanaged Switch

The D-Link DGS-1016D/B is a 16-port Gigabit Ethernet unmanaged switch designed to enhance network performance for small to medium-sized businesses and home offices. It offers a reliable and cost-effective solution for expanding network connectivity without the need for complex configurations.

Key Features:

• 16 Gigabit Ethernet Ports: Provides high-speed connections with auto-negotiation for 10/100/1000 Mbps speeds, ensuring optimal performance for connected devices.

• Auto MDI/MDIX Crossover: Eliminates the need for crossover cables by automatically detecting the connection type, simplifying installation.

• Fanless Design: Ensures silent operation, making it ideal for noise-sensitive environments.

• Quality of Service (QoS): Supports IEEE 802.1p QoS with 4 queues, enabling prioritization of network traffic for smoother data transfer, especially beneficial for applications like VoIP and video streaming.

• Energy-Efficient Ethernet (EEE): Complies with IEEE 802.3az standards, reducing power consumption during periods of low data activity.

Technical Specifications

• Standards Compliance:

  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.1p Quality of Service (QoS)
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy-Efficient Ethernet (EEE)

• Switching Capacity: 32 Gbps

• MAC Address Table: 8,000 entries

• Packet Forwarding Rates:

  • 10 Mbps: 14,880 packets per second per port
  • 100 Mbps: 148,800 packets per second per port
  • 1000 Mbps: 1,488,000 packets per second per port

• RAM Buffer: 512 KB per device

• Transmission Method: Store-and-forward

• Jumbo Frame Support: Up to 9,600 bytes

• LED Indicators: Per port: Link/Activity/Speed; Per device: Power

• Dimensions: 280 mm x 180 mm x 44 mm

• Weight: 1.59 kg

• Power Consumption:

  • Standby: 3.8 watts
  • Maximum: 11.0 watts

• Heat Dissipation:

  • Standby: 12.958 BTU/h
  • Maximum: 37.51 BTU/h

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -10°C to 70°C

• Operating Humidity: 10% to 90% non-condensing

• Storage Humidity: 5% to 90% non-condensing

• Certifications:

  • FCC Class A
  • ICES-003 Class A
  • CE Class A
  • C-Tick Class A
  • VCCI Class A
  • cUL
  • CB

The DGS-1016D/B’s compact metal case and wall-mountable design make it a versatile addition to any network setup. Its combination of energy efficiency, silent operation, and robust performance ensures seamless integration into various networking environments.
