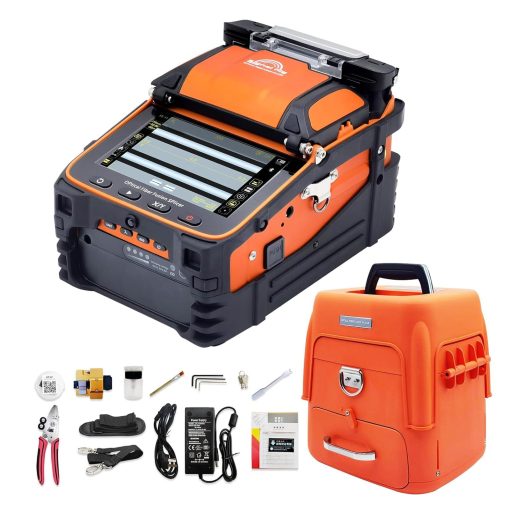

Fiber Fusion Splicing Machine Signal Fire A1-9

Signal Fire A1-9 Fiber Fusion Splicing Machine is a next-generation core alignment splicer designed for high-precision fiber optic installation, repair, and network deployment. Built with advanced six-motor core alignment technology and a robust construction, the A1-9 delivers fast, consistent, and low-loss splicing performance for single-mode and multimode fibers. With intelligent operation via a high-resolution touch screen, real-time monitoring, and a rugged, portable design, this fusion splicer is ideal for use in FTTH, backbone, and enterprise fiber networks.

Product Features

Core Alignment with Six Motors

The A1-9 uses six-motor core alignment technology to provide superior precision and stability, significantly reducing splice loss across various fiber types.

Fast Splicing and Heating Time

Designed for efficiency, it completes splicing in approximately 6 seconds and heating in about 15 seconds, improving workflow for field technicians and installers.

Intelligent Touchscreen Interface

Features a 5-inch high-resolution LCD touch display that supports intuitive user interaction and real-time status updates, even in outdoor lighting conditions.

Multi-Fiber Compatibility

Supports single-mode, multimode, dispersion-shifted, and specialty fibers, making it suitable for diverse network installations and maintenance tasks.

Long Battery Life and Field Readiness

Equipped with a high-capacity lithium battery that supports over 200 cycles of splicing and heating per charge, making it ideal for long field jobs.

Real-Time Fiber Inspection and Data Storage

Built-in fiber inspection and auto-calibration features enhance accuracy, while internal memory stores thousands of splicing results for traceability and review.

Rugged and Portable Design

Encased in a shockproof, dustproof, and weather-resistant housing, the A1-9 is engineered to perform in demanding environments without compromising performance.

Product Specifications

• Splicing method: Core alignment with six motors
• Fiber types: SM, MM, DS, NZDS, and specialty fibers
• Typical splice time: Approx. 6 seconds
• Heating time: Approx. 15 seconds
• Display: 5-inch HD touch screen
• Magnification: 300×
• Fiber display: X and Y axes simultaneously
• Fiber cleave length: 8–16 mm
• Battery capacity: Up to 200 cycles (splicing + heating) per charge
• Power supply: AC 100–240V input; DC 12V output
• Operating temperature: -10°C to 50°C
• Storage temperature: -40°C to 60°C
• Humidity: 0–95% (non-condensing)
• Connectivity: USB, Bluetooth
• Internal memory: Stores up to 10,000 splice records
• Weight: Approx. 2.3 kg (including battery)
• Dimensions: 160 mm × 120 mm × 135 mm

A1-9 delivers professional-grade splicing performance with the portability and intelligence needed for efficient fiber network expansion and service continuity.
