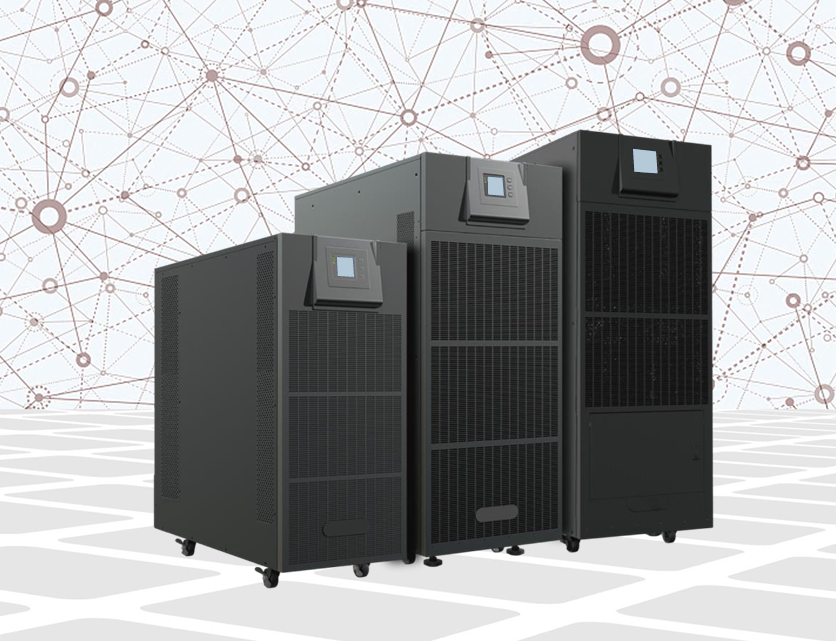

Mecer 200kVA ME-200000-GTU II 3/3 Transformaless UPS.

The Mecer ME-200K-GTU III 3/3 Galleon III 200KL is a high-capacity, three-phase online uninterruptible power supply (UPS) designed for robust performance and reliability. Below are its detailed specifications:

Input Specifications:

• Nominal Voltage: 380/400/415Vac (3Ph+N+PE)​

• Operating Voltage Range:

  • 138–485Vac at 40% load​

  • 305–485Vac at full load​

• Power Factor: ≥0.99​

• Harmonic Distortion (THDi): ≤3% with linear load​

• Bypass Voltage Range:

  • Maximum voltage:

    • 220V: +25% (Optional: +10%, +15%, +20%)

    • 230V: +20% (Optional: +10%, +15%)

    • 240V: +15% (Optional: +10%)

  • Minimum voltage: -45% (Optional: -20%, -30%)​

• Frequency Protection Range: 50/60Hz ±10%​

• Generator Input: Supported​

Output Specifications:

• Voltage: 380/400/415Vac (3Ph+N+PE)​

• Voltage Regulation: ±1%​

• Power Factor: 0.9​

• Frequency:

  • Line Mode: ±1%/±2%/±4%/±5%/±10% of the rated frequency (Optional)​

  • Battery Mode: (50/60 ±0.1)Hz​

• Crest Factor: 3:1​

• Harmonic Distortion (THDv): ≤3% with nonlinear load​

• Overload Capacity:

  • Inverter Mode:

    • ≤110% overload for 60 minutes

    • ≤125% overload for 10 minutes

    • ≤150% overload for 1 minute, then transfers to bypass

  • Bypass Mode:

    • 135% overload for a long time

      1000% overload for 100ms

• Efficiency: 96%​

Battery Specifications:

• Voltage Options: ±180V to ±300Vdc (30 to 50 batteries selectable)​

• Charging Current: Up to 60A (adjustable based on battery capacity)​

Transfer Time:

• Utility to Battery: 0ms​

• Utility to Bypass: 0ms​

Protection and Alarms:

• Alarms: Overload, utility abnormal, UPS fault, battery low, etc.​

• Protections: Short circuit, overload, overtemperature, battery low, fan fault alarm.​

• Backfeed Protection: Supported​

Communication and Management:

• Interfaces: USB, RS232, RS485, Parallel port, Dry contact, Intelligent slot, LBS, SNMP card (optional), Relay card (optional)​

• Remote LCD: Supported​

Environmental Specifications:

• Operating Temperature: 0℃ to 40℃​

• Storage Temperature: -25℃ to 55℃ (without battery)​

• Humidity Range: 0 to 95% (non-condensing)​

• Altitude: <1500m; derating required when >1500m​

• Noise Level: <65dB​

Compliance and Standards:

• Safety: IEC/EN62040-1, IEC/EN62477-1​

• EMC: IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8

​Application

The Mecer ME-200K-GTU III 3/3 Galleon III 200KL is a high-capacity, three-phase online UPS designed to provide reliable power protection for critical systems. Its robust design and advanced features make it suitable for various applications, including:​

• Data Centers: Ensures continuous operation of servers and networking equipment, safeguarding against data loss and downtime.​

• Industrial Operations: Supports heavy machinery and production lines by providing stable power, thus preventing operational interruptions.​

• Medical Facilities: Maintains power for essential medical equipment, ensuring patient safety during power disturbances.​

• Telecommunications: Keeps communication systems operational, which is vital for both everyday operations and emergency situations.​

• Financial Institutions: Protects critical banking and financial systems, ensuring transactional integrity and availability.​

This UPS is particularly beneficial in environments where power quality is crucial and any interruption can lead to significant consequences.

​

 Frequently asked questions (FAQs) about the Mecer ME-200K-GTU III 3/3

1. What is the power capacity of the Mecer ME-200K-GTU III 3/3 Galleon III 200KL UPS?

• This UPS has a capacity of 200 kVA (kilovolt-amperes), providing substantial power backup suitable for large-scale applications.​

2. Can the UPS operate in parallel with other units?

• Yes, it supports parallel operation of up to 6 units, allowing for scalability and redundancy in power systems.​

3. Is the UPS compatible with generators?

• Yes, it is designed to be compatible with generators, featuring a power walk-in function to reduce start current impact and minimize generator capacity requirements.​

4. What is the efficiency rating of this UPS?

• The UPS boasts a high efficiency of up to 96%, enhancing energy savings and reducing operational costs.​

5. How does the UPS handle overload conditions?

• In inverter mode, it can handle up to 110% overload for 60 minutes, 125% for 10 minutes, and 150% for 1 minute before transferring to bypass mode.​

6. What are the battery configuration options?

• The UPS offers flexible battery configurations, supporting between 30 to 50 batteries per group, allowing customization based on backup time requirements.​

7. What communication interfaces are available?

• It supports multiple communication interfaces, including USB, RS232, RS485, parallel port, dry contact, intelligent slot, LBS, with optional SNMP and relay cards for enhanced monitoring and management.​

8. What is the operating temperature range for this UPS?

• The UPS operates within a temperature range of 0°C to 40°C, suitable for typical indoor environments.​

9. Does the UPS provide protection against short circuits and overtemperature?

• Yes, it includes comprehensive protection features against short circuits, overloads, overtemperature, battery low conditions, and fan faults.
