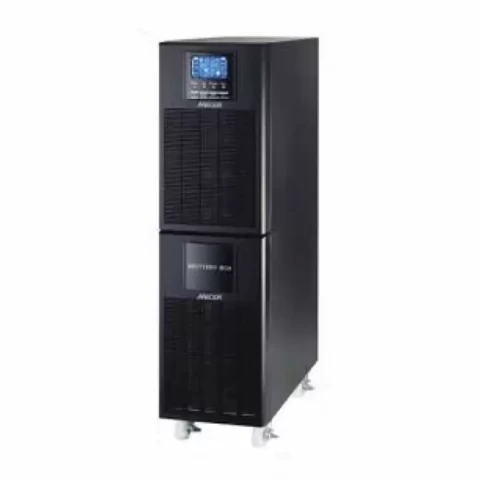

Mecer ME-6000-WPTU, 6KVA Online Smart Tower Single Phase UPS

KSh 195,000.00 (EX.Vat)

Key Features

True Double-Conversion Technology: Ensures continuous, stable power output by converting AC to DC and back to AC, providing clean power for sensitive equipment.
DSP Technology: Uses Digital Signal Processing for high performance, enhancing reliability and operational efficiency.
Output Power Factor of 0.9: Optimizes power distribution, ensuring effective use of energy.
Wide Input Voltage Range: Operates between 110-300 VAC at 50% load and 176-300 VAC at full load, ensuring stable performance even in fluctuating environments.
Active Power Factor Correction (PFC): High correction rate (≥0.99) for improved energy efficiency and reduced power wastage.
Frequency Converter Mode (50Hz/60Hz): Allows operation in regions with different frequency standards, providing global compatibility.
Eco Mode: Reduces energy consumption by shifting to energy-saving mode when input voltage is stable, optimizing operational costs.
Programmable Power Management Outlets: Enables users to control individual devices connected to the UPS.
Emergency Power Off (EPO): Provides a quick shutdown option in emergency situations for added safety.
Generator Compatibility: Ensures seamless integration with backup generators.
Extended Charger Capacity: Supports up to 8A in long-run models, offering more flexibility for extended backup needs.
SNMP/USB/RS-232 Communication Ports: Facilitates remote monitoring and management, offering flexibility for integration into existing systems.
3-Stage Charging Design: Optimizes battery charging for longer battery life and improved reliability.
Adjustable Battery Numbers: Flexibility to adjust the number of batteries for different runtime requirements.
Maintenance Bypass: Enables maintenance without shutting down the UPS, ensuring continuous power.
Optional N+X Parallel Redundancy: Scalable power protection for systems requiring high availability.

These features make the Mecer ME-6000-WPTU an ideal solution for data centers, industrial machinery, telecommunications, and large office environments.

Categories: Mecer UPS, UPS & Power Backup

Description
Reviews (0)

Mecer ME-6000-WPTU, 6KVA Online Smart Tower UPS

The Mecer ME-6000-WPTU is a high-performance, true double-conversion online UPS designed to provide reliable power protection in critical environments. With a power capacity of 6,000 VA (4,800 W), it offers superior energy efficiency, extended battery life, and advanced remote monitoring capabilities.

Key Features:

True Double-Conversion Technology: Delivers stable, clean output power continuously.
DSP Technology: Digital Signal Processing ensures optimal performance and reliability.
Output Power Factor: 0.9, providing better power distribution.
Wide Input Voltage Range: Operates between 110-300 VAC (at 50% load) and 176-300 VAC (at 100% load).
Active Power Factor Correction (PFC): ≥ 0.99 at full load for energy efficiency.
Frequency Converter Mode (50Hz/60Hz): Ideal for international use with different frequency standards.
Eco Mode: Energy-saving mode for stable input voltage, reducing power consumption.
Programmable Power Management Outlets: Allows individual control of connected equipment.
Emergency Power Off (EPO): Quickly shuts down in emergencies for safety.
Generator Compatibility: Compatible with backup generators.
Charger Capacity Expansion: Up to 8A for long-run models.
SNMP/USB/RS-232 Communication: Enables remote monitoring and management.
3-Stage Charging Design: Optimizes battery life and performance.
Adjustable Battery Numbers: Flexibility for different runtime needs.
Maintenance Bypass: Ensures continued operation during maintenance.
Optional N+X Parallel Redundancy: Scalable, redundant power protection.

Technical Specifications:

Input:

Nominal Voltage: 208/220/230/240 VAC
Voltage Range: 176-300 VAC (at 100% load), 110-300 VAC (at 50% load)
Frequency Range: 46-54 Hz or 56-64 Hz
Power Factor: ≥ 0.99 (at full load)

Output:

Output Voltage: 208/220/230/240 VAC
AC Voltage Regulation (Battery Mode): ± 1%
Frequency Range (Synchronized): 46-54 Hz or 56-64 Hz
Frequency Range (Battery Mode): 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Transfer Time (AC to Battery Mode): Zero (no interruption)
Waveform (Battery Mode): Pure sinewave

Efficiency:

AC Mode Efficiency: 89%
Battery Mode Efficiency: 88%

Battery:

Standard Model: 12 V / 9 AH (16 batteries)
Recharge Time: 7 hours to 90% capacity
Charging Voltage: 273 VDC ± 1%
Long-run Model: 18-20 batteries with up to 4.0 A charging current

Indicators & Alarms:

LCD Display: UPS status, load level, battery level, input/output voltage, discharge timer, and fault conditions.
LED Panel: 16 LEDs to show UPS status, load level, battery level, overload, fault, and more.
Audible Alarms: Battery mode, low battery, overload, and fault warnings.

Physical Characteristics:

Dimensions (D x W x H): 592 x 250 x 576 mm
Net Weight (Standard Model): 81 kg
Net Weight (Long-run Model): 25 kg

Environmental:

Humidity: 20-90% RH @ 0-40°C (non-condensing)
Noise Level: <55 dBA at 1 meter

Management:

Smart RS-232/USB: Supports multiple operating systems for monitoring.
Optional SNMP: Allows for remote management via SNMP manager or web browser.

Summary Table:

Feature	Specification
Capacity	6,000 VA / 4,800 W
Input Voltage	176-300 VAC (100% load), 110-300 VAC (50% load)
Output Voltage	208/220/230/240 VAC
Transfer Time	Zero (AC to Battery & Inverter to Bypass)
Efficiency	89% (AC Mode), 88% (Battery Mode)
Battery Type	12 V / 9 AH x 16 (Standard)
Recharge Time	7 hours to 90% capacity
Communication Ports	RS-232, USB, SNMP
Noise Level	< 55 dBA at 1 Meter
Warranty	2 Years (UPS), 1 Year (Battery)
Dimensions (D x W x H)	592 x 250 x 576 mm
Weight (Standard Model)	81 kg

Applications:

Data Centers: Protecting servers and network infrastructure.
Industrial Equipment: Safeguarding manufacturing and automated systems.
Telecommunications: Ensuring continuous operation of switches and routers.
Large Offices: Backing up critical computers, network devices, and electronics.

Advantages:

Large capacity of 6KVA/4800W suitable for medium-to-large systems.
Zero transfer time for uninterrupted power during switching.
Energy-efficient ECO mode to reduce power consumption.
Remote monitoring and control through RS-232, USB, or SNMP.

FAQs:

What is the total power capacity?
6,000 VA (4,800 W), ideal for medium-to-large setups.
How does it handle voltage fluctuations?
It supports a wide input voltage range to ensure stable output even with fluctuating power.
What is the UPS’s efficiency?
89% in AC mode, 88% in battery mode.
How long to recharge the batteries?
Approximately 7 hours to reach 90% capacity.
Does the UPS support remote monitoring?
Yes, through RS-232, USB, or SNMP.
Is it generator compatible?
Yes, it integrates seamlessly with backup power systems.
