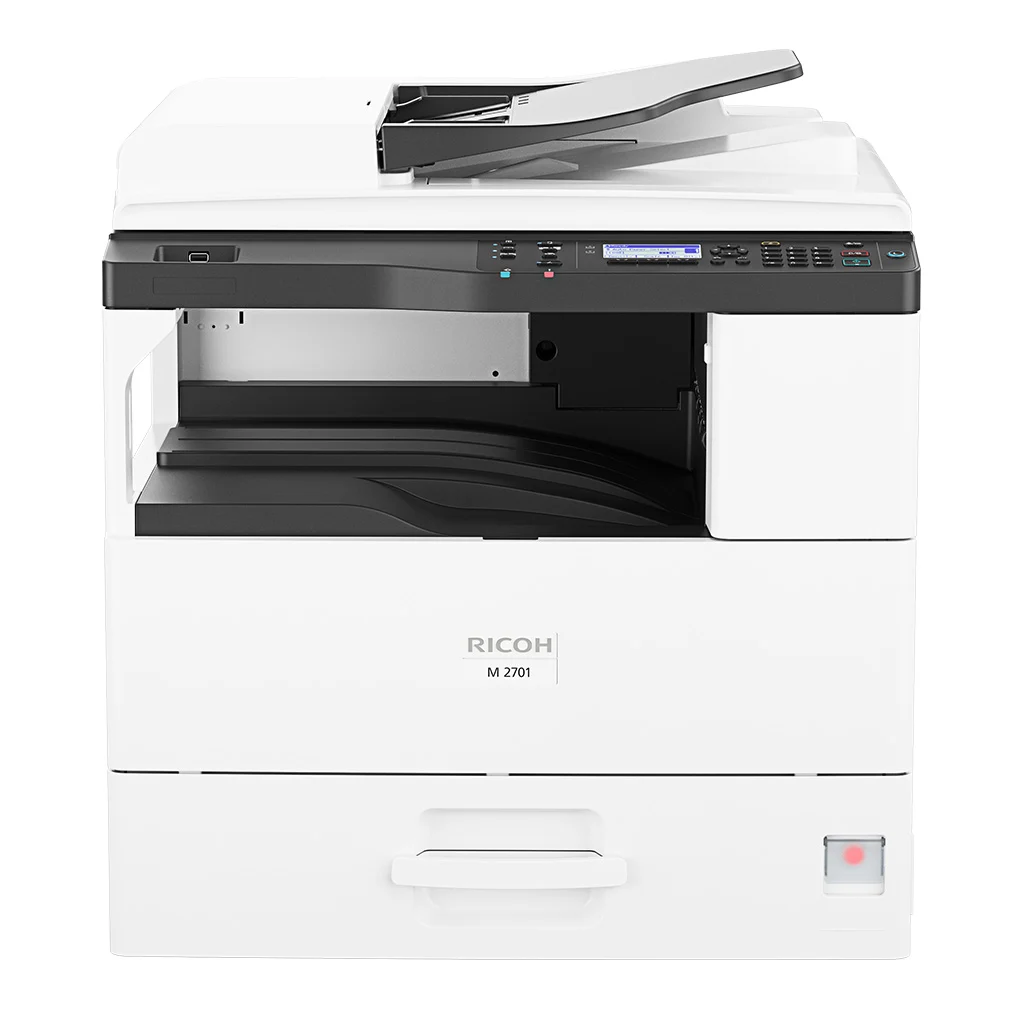

Ricoh M 2701 A3 black and white multifunction printer

The Ricoh M 2701 is a robust A3 monochrome multifunction printer (MFP) designed for small to medium-sized offices. It offers printing, copying, and scanning functionalities, with optional fax capabilities. Below is a comprehensive overview of its specifications

 General Specifications

• Functions: Print, Copy, Scan (Fax optional)

• Warm-up Time: 19 seconds

• First Copy Time: 6.5 seconds (via platen), 12 seconds (via ARDF)

• Print/Copy Speed: 27 pages per minute (ppm)

• Memory: 512 MB

• Dimensions (W x D x H): 587 x 581 x 639 mm

• Weight: Approximately 39 kg

• Power Source: 220–240 V, 50–60 Hz

• Operation Panel: 4-line LCD

 Printing Features

• Print Technology: Electro-photographic (laser)

• Print Resolution: 600 x 600 dpi

• Page Description Language: GDI

• Duplex Printing: Standard

• Mobile Printing: Supports Apple AirPrint and Mopria®

 Copying Features

• Multiple Copying: Up to 999 copies

• Copy Resolution: Up to 600 x 600 dpi

• Zoom Range: 25% to 400%

• Duplex Copying: Standard

• ID Card Copying: Supported

 Scanning Features

• Scan Speed:

  • Black & White: 18 images per minute (ipm)

  • Color: 6 ipm

• Scan Resolution: Up to 600 dpi

• Scan Destinations: Email, Folder (SMB), USB/SD

• Supported File Formats:

  • Black & White: PDF, TIFF

  • Color: PDF, JPEG

 Paper Handling

• Standard Input Capacity: 600 sheets (500-sheet tray + 100-sheet bypass tray)

• Maximum Input Capacity: 1,600 sheets

• Standard Output Capacity: 250 sheets

• Supported Paper Sizes: Up to A3

• Paper Weights:

  • Trays: 52–105 g/m²

  • Bypass Tray: 52–216 g/m²

 Connectivity

• Standard Interfaces:

  • Ethernet 10Base-T/100Base-TX/1000Base-T

  • USB 2.0 Type B

• Optional Interfaces:

  • Wireless LAN (IEEE 802.11 a/b/g/n/ac)

• Network Protocols: TCP/IP (IPv4, IPv6)

• Supported Operating Systems:

  • Windows® 7, 8, 8.1, 10

  • Windows® Server 2008, 2012, 2016

 Security Features

• Wireless LAN Security: WEP, WPA

• Document Protection: Password protection and lock for confidential documents

 Environmental Features

• Power Consumption:

  • Maximum: <1,550 W

  • Ready Mode: 93 W

  • Low Power Mode: 23 W

  • Sleep Mode: 0.97 W

• Typical Electricity Consumption (TEC): Approximately 1.18 kWh

 Consumables

• Toner Yield:

  • Regular Yield: 4,000 prints

  • High Yield: Information not specified
