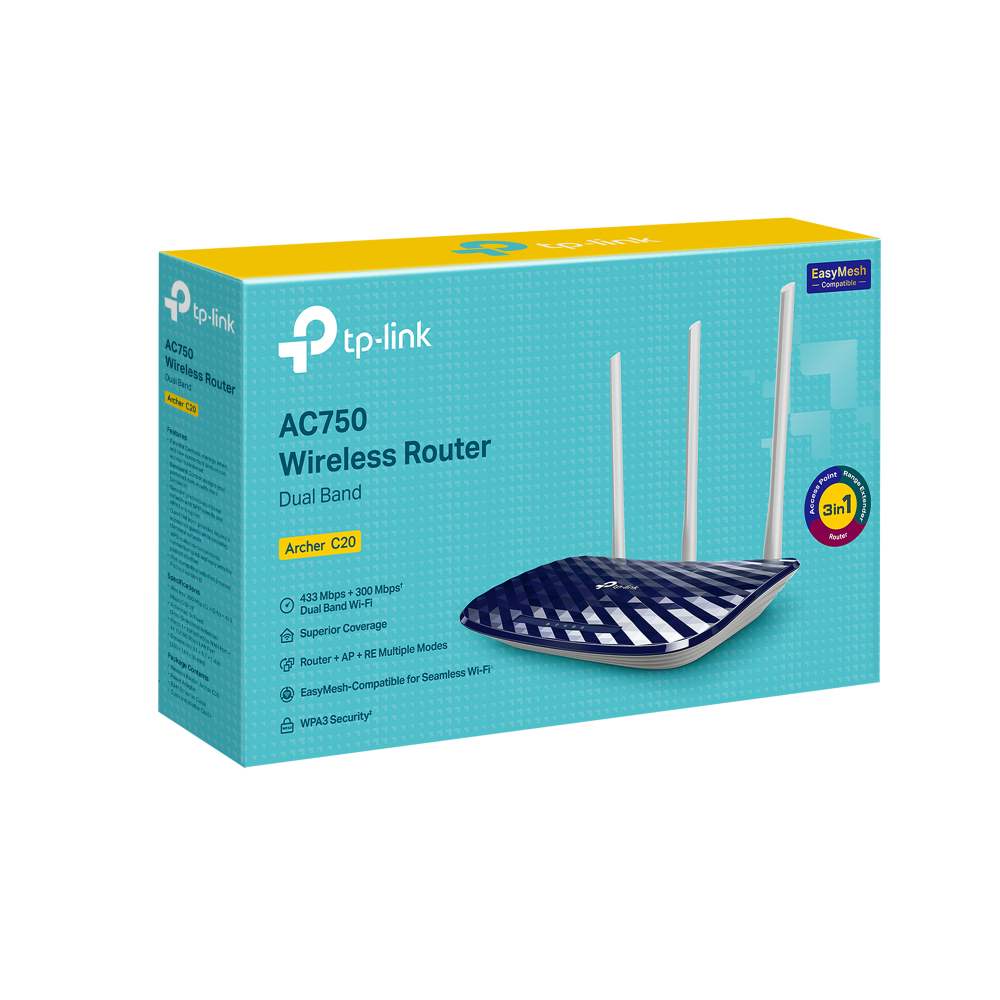

TP-Link Archer C20 AC750 Wireless Dual Band Router

The TP-Link Archer C20 is an AC750 Wireless Dual Band Router designed to upgrade your home network with enhanced speed and reliable performance. Below are its detailed specifications:​

Hardware Features:

• Processor:

  • Single-Core CPU​

• Interfaces:

  • Four 10/100 Mbps LAN Ports​

  • One 10/100 Mbps WAN Port​

• Buttons:

  • WPS/Reset Button​

  • Wireless On/Off Button​

  • Power On/Off Button​

• External Power Supply:

  • 9VDC / 0.6A​

• Dimensions (W x D x H):

  • 9.1 × 5.7 × 1.4 inches (230 × 144 × 35 mm)

• Antenna Type:

  • Three fixed external antennas​

Wireless Features:

• Wireless Standards:

  • IEEE 802.11ac/n/a 5 GHz​

  • IEEE 802.11n/b/g 2.4 GHz​

• Frequency:

  • 2.4 GHz and 5 GHz​

• Signal Rate:

  • 5 GHz: Up to 433 Mbps​

  • 2.4 GHz: Up to 300 Mbps​

• Wireless Functions:

  • Enable/Disable Wireless Radio​

  • WDS Bridge​

  • WMM​

  • Wireless Statistics​

• Wireless Security:

  • 64/128-bit WEP​

  • WPA/WPA2​

  • WPA-PSK/WPA2-PSK encryption​

Software Features:

• Quality of Service (QoS):

  • WMM

  • Bandwidth Control​

• WAN Type:

  • Dynamic IP​

  • Static IP​

  • PPPoE​

  • L2TP​

  • PPTP​

• Management:

  • Access Control​

  • Local Management​

  • Remote Management​

• DHCP:

  • Server​

  • Client​

  • DHCP Client List​

  • Address Reservation​

• Port Forwarding:

  • Virtual Server​

  • Port Triggering​

  • UPnP​

  • DMZ​

• Dynamic DNS:

  • DynDns​

  • NO-IP​

• Access Control:

  • Parental Control​

  • Local Management Control​

  • Host List​

  • Access Schedule​

  • Rule Management​

• Firewall Security:

  • SPI Firewall​

  • Access Control​

  • IP & MAC Binding​

  • Application Layer Gateway​

• Guest Network:

  • 1× 5 GHz Guest Network​

  • 1× 2.4 GHz Guest Network​

Additional Features:

• High-Speed Dual Band Wi-Fi: Provides up to 300 Mbps on the 2.4 GHz band and 433 Mbps on the 5 GHz band, totaling 733 Mbps of available bandwidth. This facilitates seamless HD streaming, online gaming, and other bandwidth-intensive tasks. ​

• Innovative Antenna Design: Equipped with three external antennas, the Archer C20 ensures stable omnidirectional signal and superior wireless coverage throughout your home or office.

• Multiple Operating Modes: Supports Router Mode, Access Point Mode, and Range Extender Mode, providing flexible deployment options based on your networking needs. ​

• Easy Setup and Management: Set up the Archer C20 in minutes with its intuitive web interface and the TP-Link Tether app, which allows you to manage network settings from any Android or iOS device, including parental controls and access control features. ​

• Guest Network Access: Provides secure access for guests to connect to your Wi-Fi network without compromising your main network’s security, enhancing privacy and convenience. ​

• Parental Controls: Allows administrators to restrict access for children or staff, enabling responsible internet usage by setting up blacklists or limiting access times. ​

• IPv6 Support: Future-proofs your network by supporting the latest Internet Protocol version, ensuring compatibility with upcoming technologies. ​

These features make the TP-Link Archer C20 a versatile and reliable choice for enhancing your wireless network’s performance and security.
