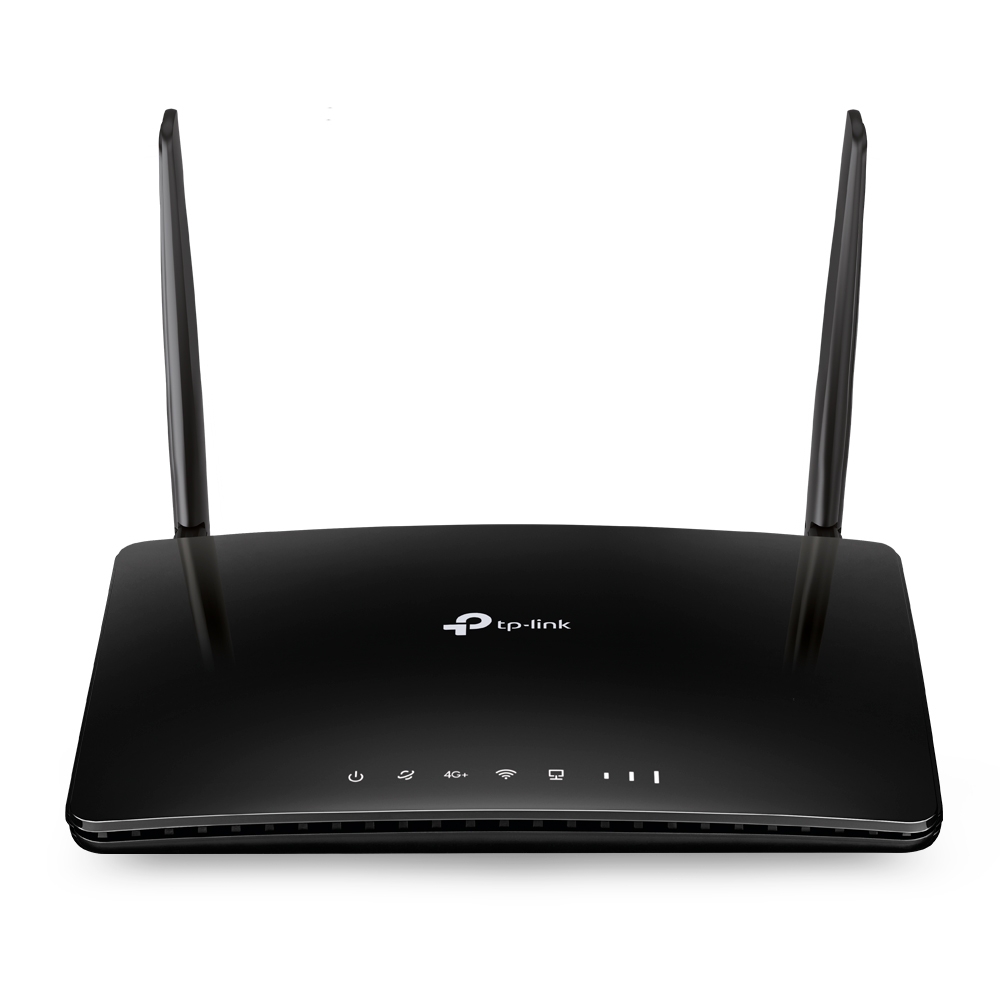

TP-link Archer MR600 4G+ Cat6 AC1200 Router
The TP-Link Archer MR600 is a 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router designed to deliver high-speed internet access via cellular networks. Below are its detailed specifications:
Hardware Features:
-
Interfaces:
-
1 × Gigabit WAN/LAN port
-
3 × Gigabit LAN ports
-
1 × Nano SIM card slot
-
-
Buttons:
-
WPS/Reset button
-
Wi-Fi On/Off button
-
Power On/Off button
-
-
Power Supply:
-
Input: 100-240V~50/60 Hz 0.6A
-
Output: 12V ⎓ 1.5A
-
-
Antenna:
-
2 × detachable 4G LTE antennas
-
-
Dimensions:
-
202 × 141 × 33.6 mm (7.95 × 5.55 × 1.32 in)
-
Wireless Features:
-
Wireless Standards:
-
IEEE 802.11a/n/ac (5 GHz)
-
IEEE 802.11b/g/n (2.4 GHz)
-
-
Frequency:
-
2.4 GHz and 5 GHz
-
-
Signal Rate:
-
2.4 GHz: up to 300 Mbps
-
5 GHz: up to 867 Mbps
-
-
Reception Sensitivity:
-
5 GHz:
-
11a 54M: -74 dBm
-
11ac HT20: -66 dBm
-
11ac HT40: -63 dBm
-
11ac HT80: -59 dBm
-
11n HT20: -73 dBm
-
11n HT40: -70 dBm
-
-
2.4 GHz:
-
11g 54M: -74 dBm
-
11n HT20: -72 dBm
-
11n HT40: -69 dBm
-
-
-
Transmit Power:
-
< 20 dBm (2.4 GHz)
-
< 23 dBm (5 GHz)
-
-
Wireless Functions:
-
Enable/Disable Wireless Radio
-
Wireless Schedule
-
WMM
-
Wireless Statistics
-
-
Wireless Security:
-
64/128-bit WEP
-
WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
-
Network Type:
-
4G:
-
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
-
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
-
-
3G:
-
DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
-
Carrier Aggregation:B1+ B5/B7/B8/B20
-
B3+B3/B5/B7/B8/B20/B28/B38/B40
-
B5+B5/B7/B40
-
B7+B7/B8/B20/B28
-
B28+B40
-
B38+B38
-
B40+B40
-
B41+B41
Software Features:
-
Quality of Service (QoS):
-
Bandwidth Control
-
-
Security:
-
DoS
-
IPv4 SPI Firewall
-
IPv6 Firewall
-
IP and MAC Address Binding
-
Access Control
-
-
WAN Type:
-
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
-
-
Management:
-
TP-Link Cloud
-
Local Management
-
Remote Management
-
-
DHCP:
-
Server
-
DHCP Client List
-
Address Reservation
-
-
Port Forwarding:
-
ALG
-
Virtual Server
-
Port Triggering
-
UPnP
-
DMZ
-
-
Dynamic DNS:
-
TP-Link
-
DynDns
-
NO-IP
-
-
VPN:
-
PPTP VPN
-
IPSec VPN
-
OpenVPN
-
