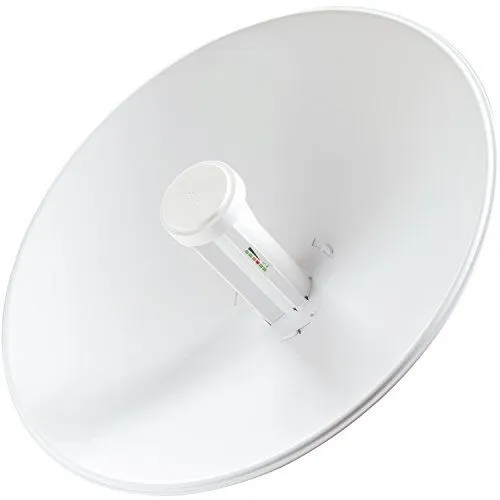

Ubiquiti airMAX PowerBeam M5 (PBE-M5-400)
KSh 16,000.00 (EX.Vat)
Key Features
The Ubiquiti PowerBeam M5 400 (PBE-M5-400) is a high-performance wireless bridge designed for point-to-point and point-to-multipoint applications. Its key features include:
- High Gain Antenna: Equipped with a 25 dBi dish reflector, the PowerBeam M5 400 provides a focused beamwidth, enhancing signal strength and interference rejection.
- Enhanced Throughput: Capable of delivering over 150 Mbps of real TCP/IP throughput, ensuring efficient data transmission for bandwidth-intensive applications.
- Extended Range: Designed to maintain robust connectivity over distances exceeding 25 kilometers, making it suitable for long-range deployments.
- Innovative Mechanical Design: Features a built-in mechanical tilt with 20° of uptilt and up to 20° of downtilt, facilitating precise alignment during installation.
- Plug and Play Installation: The quick assembly and easy removal of the antenna feed simplify the setup process, reducing installation time and costs.
- Robust Performance: Utilizes Ubiquiti’s InnerFeed technology, integrating the radio into the feedhorn of the antenna, eliminating the need for cables and improving performance by reducing cable losses.
These features make the PowerBeam M5 400 a reliable and efficient solution for establishing high-speed wireless links in various networking scenarios.
Ubiquiti airMAX PowerBeam M5 PBE-M5-400
The Ubiquiti PowerBeam M5 400 (PBE-M5-400) is a high-performance wireless bridge designed for point-to-point and point-to-multipoint connections. Below are its detailed specifications:
General Specifications:
- Frequency Band: 5 GHz
- Antenna Gain: 25 dBi
- Dish Reflector Diameter: 400 mm
- Maximum Throughput: 150+ Mbps
- Maximum Range: 25+ km
- Processor: Atheros MIPS 74Kc, 560 MHz
- Memory: 64 MB DDR2, 8 MB Flash
- Network Interface: 10/100/1000 Ethernet Port
- Power Consumption: 8W
- Power Supply: 24V, 0.5A Gigabit PoE Adapter (included)
Physical and Environmental Specifications:
- Dimensions: 420 x 420 x 275 mm
- Weight: 1.753 kg
- Operating Temperature: -40 to 70° C (-40 to 158° F)
- Operating Humidity: 5 to 95% non-condensing
- Wind Survivability: 200 km/h (125 mph)
- ESD/EMP Protection: Air/contact: ±24 kV
Compliance and Certifications:
- Certifications: CE, FCC, IC
- RoHS Compliance: Yes
Additional Features:
LED Indicators: Power, LAN, and 4 WLAN Signal Strength LEDs (software-adjustable to correspond to custom RSSI levels)
- Channel Sizes: 5/8/10/20/30/40 MHz
- Polarization: Dual linear
- Operating Frequency (MHz):
- Worldwide: 5170 – 5875 MHz
- US/CA: 5725 – 5850 MHz
For enhanced performance in noisy environments, Ubiquiti offers an optional RF Isolated Reflector version, the PBE-M5-400-ISO, which includes a 400 mm RF isolated reflector to improve noise immunity.
