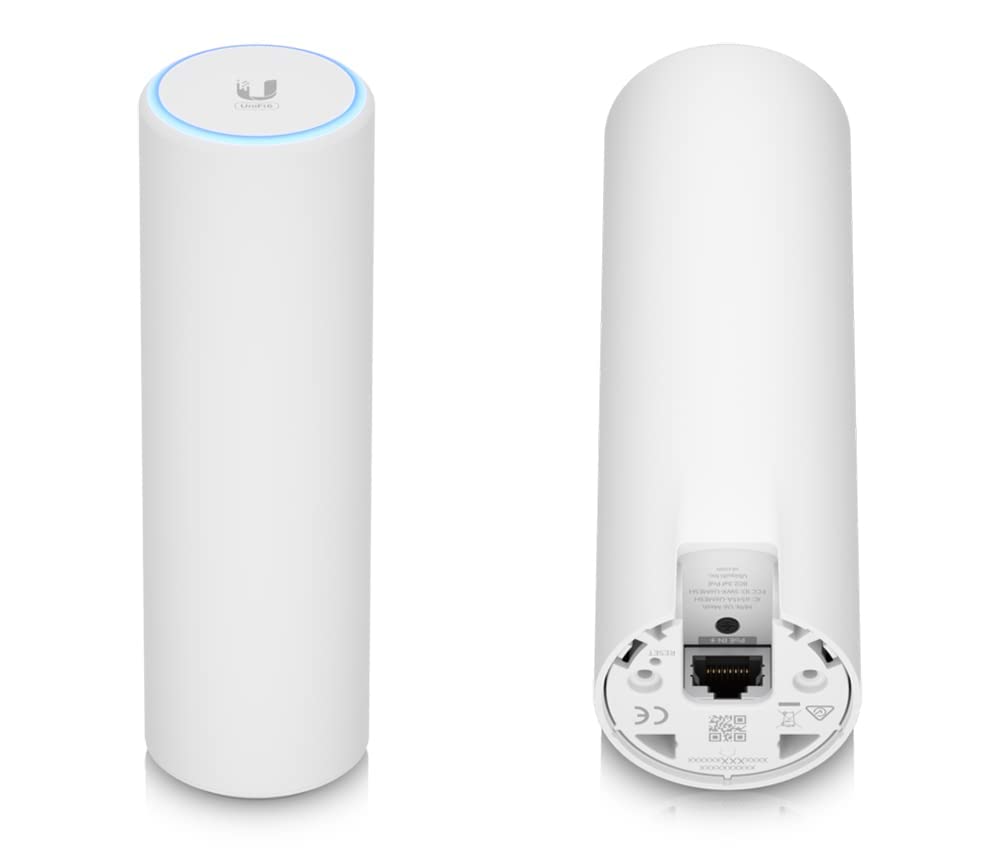

Ubiquiti UniFi AP WiFi 6 Mesh Access Point (U6-MESH)

KSh 31,000.00 (EX.Vat)

Key Features

WiFi 6 Support: Next-gen WiFi 6 technology for faster speeds, increased capacity, and reduced latency.
6 Spatial Streams: Enhanced throughput with multiple data streams for better performance.
Mesh Capable: Ideal for mesh networking setups, ensuring flexible coverage in both indoor and outdoor environments.
Coverage: Provides up to 140 m² (1,500 ft²) of coverage, ensuring seamless connectivity over a large area.
Concurrent Clients: Supports 300+ connected devices for environments with heavy usage.
PoE Power: Powered through PoE (Power over Ethernet), simplifying installation by eliminating the need for an additional power source.
GbE Uplink: Gigabit Ethernet uplink for high-speed data transmission.
Weatherproof Design: IPX5 weatherproofing when installed LED side up, perfect for outdoor applications.
Mounting Options: Flexible wall, desktop, pole, or ceiling mounting options for easy installation.
Advanced Security: Supports WPA3 security protocols for a more secure wireless network.
Zero-Wait DFS: Supports Zero-Wait DFS, enabling uninterrupted service on DFS channels with the upcoming firmware.
Bluetooth Management: Bluetooth-enabled for easier initial setup and configuration.

These features make the Ubiquiti UniFi U6-MESH a powerful, versatile solution for large spaces and mesh network deployment, providing superior speed, coverage, and scalability.

Categories: Networking, Ubiquiti Access Points

Description
Reviews (0)

Specifications Of Ubiquiti UniFi AP WiFi 6 Mesh Access Point (U6-MESH)

Mechanical

Dimensions: Ø48.5 x 159.5 mm (Ø1.9 x 6.3″)
Weight: 400 g (14.1 oz)
Enclosure Material: Polycarbonate, aluminum
Mount Material: Polycarbonate
Weatherproofing: IPX5 (Outdoor exposed when installed LED side up with included pole/wall mount accessory)

Hardware

Networking Interface: (1) GbE RJ45 port
Management Interface: Ethernet
Bluetooth: Yes
Power Method: PoE (Power over Ethernet)
Power Supply: UniFi PoE switch (48V, 0.32A PoE adapter included)
Supported Voltage Range: 44—57V DC
Max Power Consumption: 13W
Max TX Power:
- 2.4 GHz: 22 dBm
- 5 GHz: 26 dBm
- 6 GHz: –
MIMO:
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 4 x 4 (DL/UL MU-MIMO)
- 6 GHz: –
Max Data Rate:
- 2.4 GHz: 573.5 Mbps (BW40)
- 5 GHz: 4.8 Gbps (BW160)
- 6 GHz: –
Antenna Gain:
- 2.4 GHz: 3 dBi
- 5 GHz: 5 dBi
- 6 GHz: –
LEDs: White/Blue
Button: Factory reset
Mounting Options: Wall, desktop, pole (included); Ceiling (optional)

Environmental

Ambient Operating Temperature: -30 to 60°C (-22 to 140°F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

Software

WiFi Standards: 802.11a/b/g/n/ac/ax (WiFi 6)
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest Traffic Isolation: Supported
Zero Wait DFS: Yes (Supported with upcoming firmware versions)
Concurrent Clients: 300+

Supported Data Rates (Mbps)

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac: 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)

Application Requirements

UniFi Network: Version 6.2.51 and later

This versatile and compact WiFi 6 mesh access point is ideal for both indoor and outdoor use, providing excellent coverage, high-speed connections, and reliable performance in mesh configurations.
