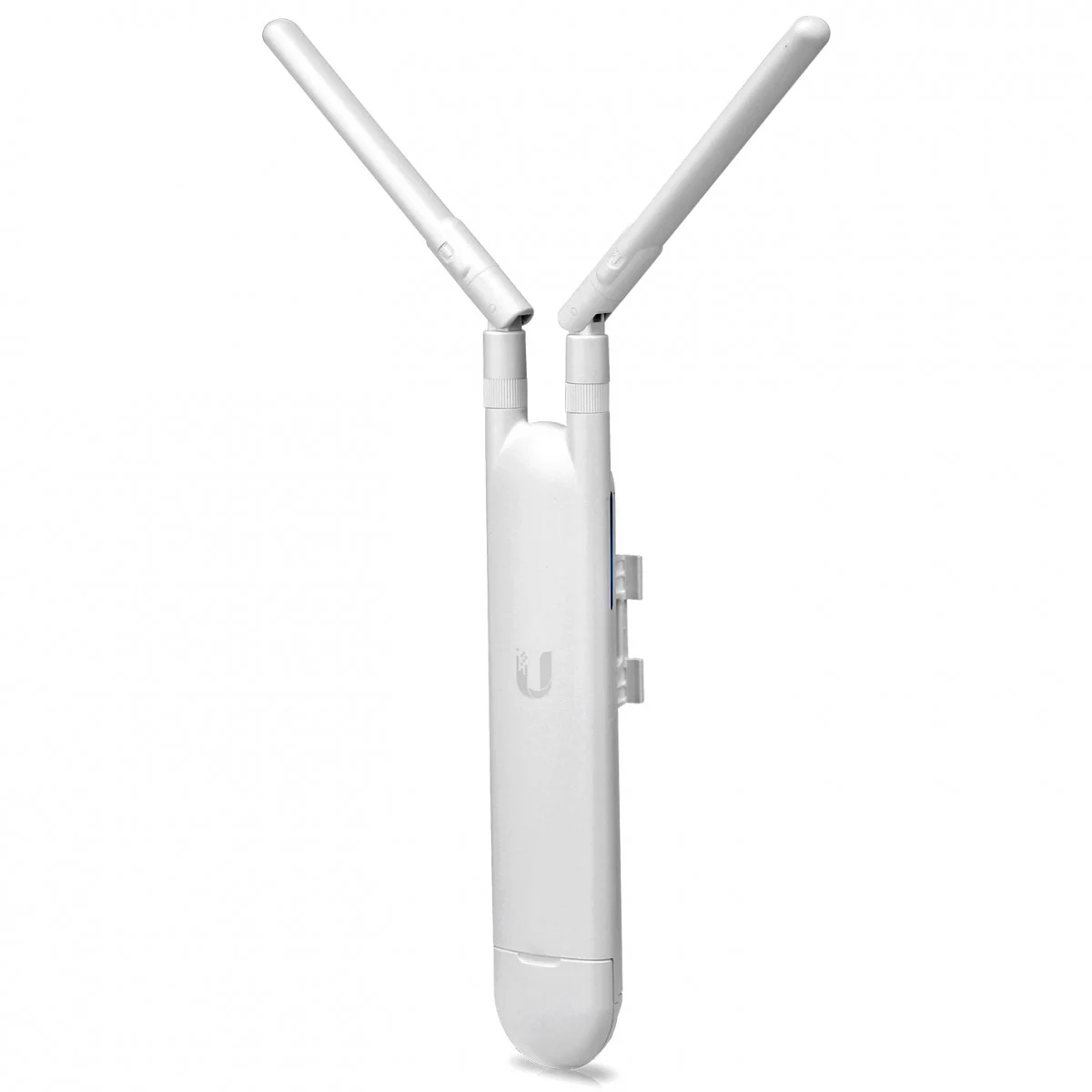

Ubiquiti UniFi UAP-AC-M Wi-Fi 5 Mesh Access Point (UAP-AC-M)

The Ubiquiti UniFi UAP-AC-M is a compact, high-performance Wi-Fi 5 mesh access point designed for both indoor and outdoor use. It supports 4 spatial streams and offers flexible mounting options, making it ideal for extending coverage in large spaces and areas requiring directional coverage with optional external antennas.

Key Features

• Wi-Fi 5 (802.11ac) for fast and reliable wireless networking
• 4 spatial streams for efficient multi-device communication
• Coverage Area: 140 m² (1,500 ft²) ideal for medium to large spaces
• 250+ connected devices capability for large-scale environments
• PoE-powered (Passive PoE 24V) for simple installation with minimal cabling
• Max Data Rate: 2.4 GHz up to 300 Mbps and 5 GHz up to 867 Mbps (BW80)
• 2×2 MIMO technology on both 2.4 GHz and 5 GHz bands
• External antenna support via two RP-SMA connectors for directional coverage (UMA-D external antenna accessory)
• Weatherproof design for outdoor deployment with a temperature range from -30°C to 70°C (-22°F to 158°F)
• Mounting options: Wall, pole, or fast-mount (included)
• Power Consumption: Max. 8.5W
• Bluetooth integration for easy management and setup
• Networking interface: 1 GbE RJ45 port
• VLAN support for network segmentation
• Guest traffic isolation for secure guest network access
• Security Standards: WPA-PSK, WPA-Enterprise (WPA/WPA2) with TKIP/AES encryption

Mechanical Specifications

• Dimensions: 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4″)
• Weight: 152 g (5.4 oz)
• Weatherproofing: IPX5 (weatherproof when installed LED side up)

Performance

• 2.4 GHz Max TX Power: 20 dBm
• 5 GHz Max TX Power: 20 dBm
• Antenna Gain:
  • 2.4 GHz: 3 dBi
  • 5 GHz: 4 dBi
• Supported Data Rates:
  • 802.11a/b/g: Up to 54 Mbps
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
  • 802.11ac: 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)

Software & Management

• UniFi Controller Software: Easy-to-use network management with cloud access
• Advanced QoS: Per-user rate limiting for better traffic management
• VLAN Support: 802.1Q for creating virtual LANs
• BSSID Support: Up to 4 per radio for optimal wireless performance

Power and Mounting

• Power Supply: Gigabit PoE adapter (included with single unit purchase, 24V, 0.5A)
• Power Method: Passive PoE, 24V
• Mounting Options: Wall, pole, fast-mount (included)
• External Antenna: Optional UMA-D antenna for enhanced directional coverage

Certifications

• CE, FCC, IC, UKCA

This access point is an excellent choice for extending coverage in demanding environments with flexible mounting options, weatherproofing, and optional external antenna support for improved directional coverage. Ideal for businesses, outdoor areas, and large spaces requiring reliable Wi-Fi coverage.
