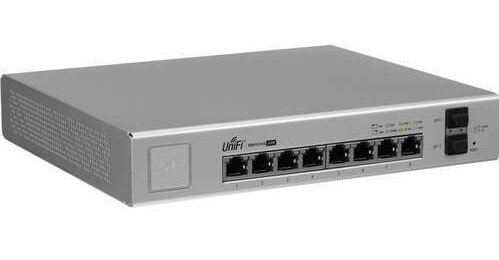

Ubiquiti UniFi US-8-150W Network Switch – Specifications
Physical Dimensions and Weight
- Dimensions: 235 x 43 x 204 mm (9.3 x 1.7 x 8 inches)
- Weight: 1.7 kg (3.7 lb)
- Enclosure Material: SGCC steel
Hardware Specifications
- Management Interface: Ethernet In-Band
- Networking Interface:
- (8) GbE RJ45 Ports
- (2) 1G SFP Ports
- PoE Interface:
- (8) PoE/PoE+ 2-pair (Pins +1, 2; -3, 6)
- 24V DC/0.7A passive PoE 2-pair (Pins +4, 5; -7, 8)
- Total Non-Blocking Throughput: 10 Gbps
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
Power Specifications
- Power Method: Universal input, 100—240V AC, 50/60 Hz
- Power Supply: AC/DC, internal, 150W
- Max. Power Consumption: 20W (Excluding PoE output)
- Total Available PoE: 130W
- Max. PoE Wattage per Port by PSE:
- PoE: 17W
- PoE+: 34W
- Voltage Range PoE Mode:
- 24V Passive PoE: 20–27V
- PoE+: 50—57V
Environmental and Protection Specifications
- ESD/EMP Protection:
- Air: ± 24kV
- Contact: ± 24kV
- Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
- Ambient Operating Humidity: 5 to 95% non-condensing
- Certifications: CE, FCC, IC
Other Features
- LED Indicators:
- Ethernet
- PoE
- Speed/Link/Activity
- Button: Factory reset
This switch is a compact, high-performance solution ideal for small and medium networks that require power over Ethernet for devices like access points and IP cameras. With PoE+ support, it ensures efficient and seamless operation.
