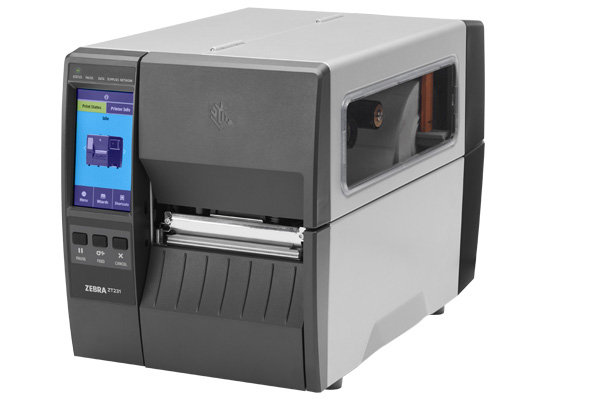

​Zebra ZT231 Industrial Label Printer(ZT23142-T0E000FZ)

The Zebra ZT231 (model ZT23142-T0E000FZ) is an industrial thermal transfer label printer designed for high-performance printing in demanding environments. Below are its detailed specifications:​

Printing Specifications:

• Print Method: Thermal Transfer and Direct Thermal​
• Resolution: 203 dpi (8 dots per mm)​
• Maximum Print Width: 4.09 inches (104 mm)​
• Maximum Print Speed: 12 inches per second (305 mm per second)​
• Maximum Print Length: 157 inches (3988 mm)​

Media Handling:

• Media Width: 0.75 inches (19.4 mm) to 4.5 inches (114 mm)​
• Media Roll Size: 8.0 inches (203 mm) outer diameter on a 3.0-inch (76 mm) inner diameter core; 6.0 inches (152 mm) outer diameter on a 1.0-inch (25 mm) inner diameter core​
• Media Thickness: 0.003 inches (0.076 mm) to 0.010 inches (0.25 mm)​
• Media Types: Continuous, die-cut, notch, black mark​

Ribbon Characteristics:

• Standard Length: 1,476 feet (450 meters)​
• Width: 2 inches (51 mm) to 4.33 inches (110 mm)​
• Core Diameter: 1.0 inch (25.4 mm)​

Memory and Processing:

• Memory: 256 MB SDRAM; 256 MB on-board linear Flash memory​

Connectivity:

• Standard Interfaces: USB 2.0, RS-232 Serial port, 10/100 Ethernet, USB Host​
• Optional Interfaces: 802.11ac Wi-Fi, Applicator Interface​

User Interface:

• 4.3-inch color resistive touchscreen with intuitive menu for quick operation and settings​
• Three-color LEDs for quick printer status​

Physical Characteristics:

• Dimensions: 17 inches (432 mm) L x 9.5 inches (241 mm) W x 11 inches (279 mm) H​
• Weight: 20 lbs (9.1 kg)​

Environmental Conditions:

• Operating Temperature: 40°F to 105°F (5°C to 40°C)​
• Storage Temperature: -40°F to 140°F (-40°C to 60°C)​
• Operating Humidity: 20% to 85% non-condensing​
• Storage Humidity: 5% to 85% non-condensing​

Power Supply:

• Electrical: Universal auto-ranging (PFC-compliant) power supply 100-240 VAC, 50-60 Hz​
• Energy Efficiency: ENERGY STAR certified​

Firmware and Emulations:

• ZPL and ZPL II​
• EPL and EPL2 (available on 203 dpi models only)​
• ZBI 2.0 (optional)​

Fonts and Graphics:

• 7 bitmapped, 1 smooth-scalable (CG Triumvirate Bold Condensed)​
• Pre-loaded Unicode-compliant scalable fonts for EMEA character sets
• International character sets supporting IBM Code Page 850​
• Supports user-defined fonts and graphics, including custom logos​
• 64 MB user-available Flash memory storage for downloadable objects, 32 MB user-available SDRAM​

Barcode Symbologies Supported:

• 1D Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code​
• 2D Barcodes: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite)​

Additional Features:

• Metal frame and metal enclosures for durability​
• Bi-fold media door with large clear window​
• Side-loading supplies path for simplified media and ribbon loading​
• Thin film printhead with E3 Element Energy Equalizer for superior print quality​
• Bluetooth Low Energy (BTLE) technology for enhanced location precision​
• Real-Time Clock (RTC)​
• ENERGY STAR certified for energy efficiency​

The Zebra ZT231 is engineered for reliable operation and advanced features, making it suitable for various industries requiring efficient and high-quality label printing solutions.
