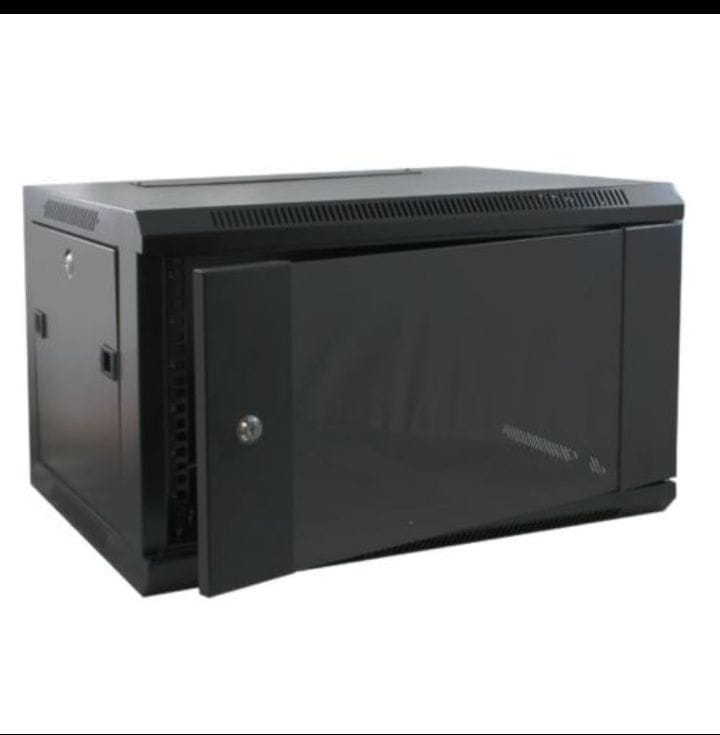

6U Wall-Mount Data Cabinet 600 x 450

Name: 6U Wall-Mount Data Cabinet 600 x 450
SKU: 10081
Availability: InStock

KSh 8,500.00 (EX.Vat)

Key Features

A 6U network cabinet with dimensions 600mm (width) x 450mm (depth) is designed to securely house networking equipment such as switches, routers, and patch panels, especially in environments with limited space. Key features to consider when selecting such a cabinet include:

1. Construction and Design:

Material: High-quality SPCC cold-rolled steel with a powder-coated finish, ensuring durability and a professional appearance.
Lockable Front Door: Tempered glass door with a lock, providing both security and visibility of the equipment.
Removable Side Panels: Enable easy access for maintenance and installation; often equipped with locks for added security.

2. Mounting and Compatibility:

Standard 19-Inch Rack Mounting: Accommodates standard 19-inch rack-mount equipment, ensuring broad compatibility.
Adjustable Mounting Rails: Allow for flexible equipment installation and optimal space utilization.

3. Cable Management:

Cable Entry Points: Located on both the top and bottom panels, facilitating organized and efficient cable routing.

4. Ventilation and Cooling:

Ventilation Slots: Strategically placed to ensure proper airflow and prevent overheating.
Fan Provisions: Some models come with pre-installed fans or provisions for adding fans to enhance cooling.

5. Load Capacity:

Weight Support: Designed to support equipment up to 130 lbs (approximately 59 kg), depending on the model.

6. Compliance and Standards:

Industry Standards: Compliant with ANSI/EIARS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB.T3047.2-92, ensuring compatibility and quality.

When selecting a 6U network cabinet, consider these features to ensure it meets your specific requirements for security, accessibility, and efficient cable management, thereby maintaining an organized and effective networking environment.

Category: Networking

Description
Reviews (0)

6U Data Cabinet 600 x 450

A 6U network cabinet with dimensions 600mm (width) x 450mm (depth) is designed to securely house networking equipment such as switches, routers, and patch panels, making it ideal for environments with limited space. Below are the detailed specifications and optimized features to consider when selecting such a cabinet:

Key Specifications:

Dimensions: 600mm (W) x 450mm (D) x 6U (height).
Construction Material: High-quality cold-rolled steel with a thickness typically around 1.2mm, ensuring durability and stability.
Load Capacity: Designed to support equipment up to 70 kg.
Mounting Compatibility: Standard 19-inch rack-mount equipment compatibility with adjustable front and rear mounting profiles for flexible equipment installation.

Features:

Design and Accessibility:
- Lockable Front Door: Tempered glass door with over 180-degree swing, providing both security and visibility.
- Removable Side Panels: Facilitate easy installation and maintenance; side locks are optional for added security.
Cable Management:
- Cable Entry Points: Knock-out holes on both the top cover and bottom panel for organized cable routing.
- Gland Plates: Located at the top and bottom to allow for easy cable access.
Ventilation and Cooling:
- Ventilation Slots: Strategically placed to ensure optimal airflow and prevent overheating.
- Fan Mounting Options: Provision for installing cooling fans to enhance air circulation.
Installation and Maintenance:
- Wall-Mountable: Designed for wall-mounted installation, ideal for environments with limited floor space.
- Pre-Assembled or Flat-Pack Options: Depending on the supplier, cabinets may come pre-assembled or in flat-pack form for on-site assembly.
Aesthetic and Finish:
- Color Options: Typically available in Black RAL9004 or Grey RAL7035.
- Surface Finish: Degreasing, pickling, phosphoric, powder-coated for a smooth and durable finish.
