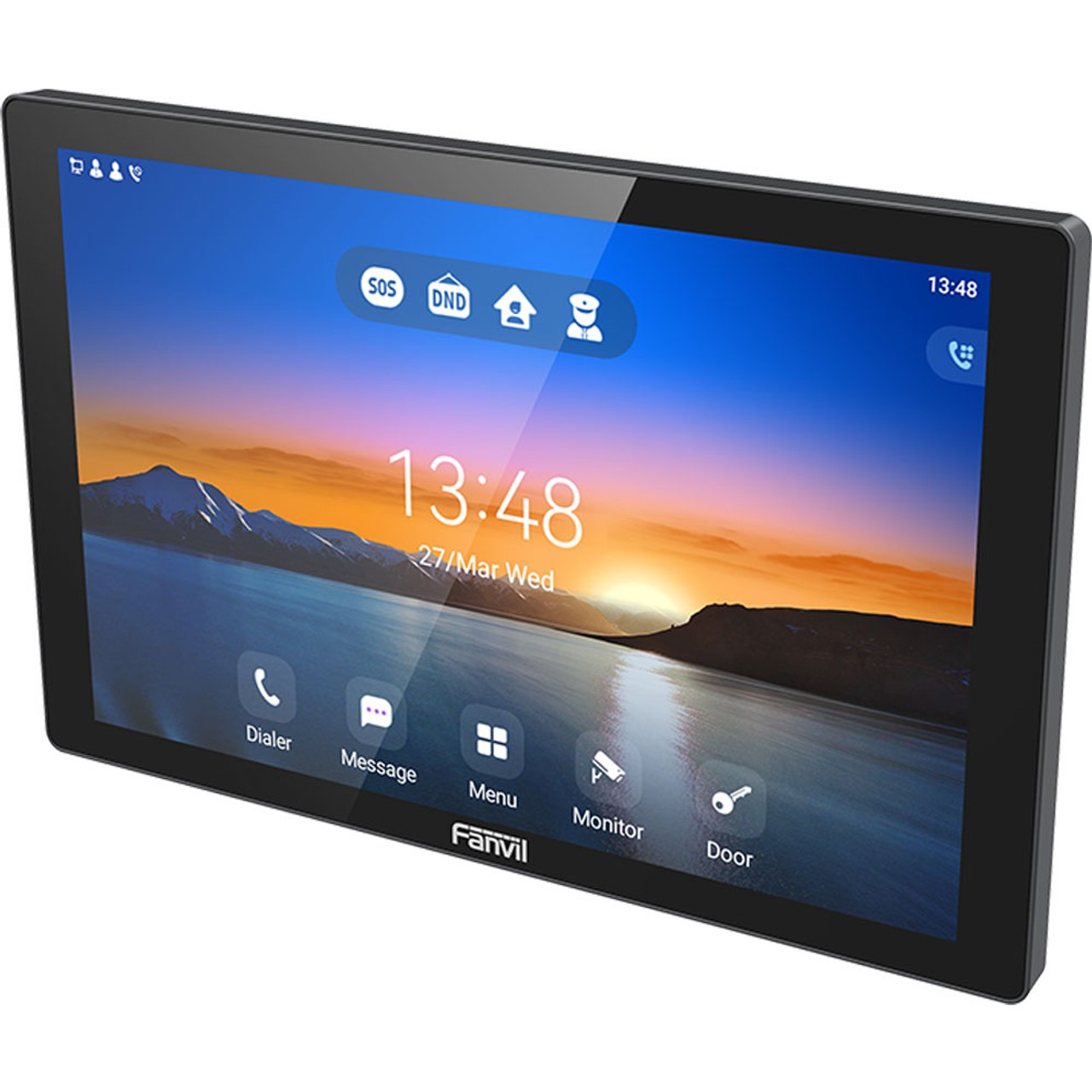

Fanvil i505W Android SIP Indoor Station

Fanvil i505W is a versatile Android-based SIP indoor station designed for seamless integration into residential, commercial, and industrial security systems. With its intuitive interface and robust connectivity options, it offers a comprehensive solution for modern intercom and access control needs.

Product Features

7-Inch Touchscreen Display

Bright, responsive touchscreen for easy navigation and enhanced user interaction.

Android Operating System

Runs on Android for smooth performance and support for multiple applications.

SIP Protocol Support

Compatible with standard SIP-based systems for reliable and flexible communication.

Built-In Wi-Fi Connectivity

Ensures stable wireless networking without the need for additional cabling.

Video Intercom & Access Control

Supports two-way video communication and integration with access control systems for added security.

Wide Application Use

Ideal for apartments, office buildings, and smart community installations.

Product Specifications

 Display & Interface

• Screen: 7-inch capacitive color touchscreen
• Resolution: 1024 × 600 pixels
• User Interface: Intuitive UI for easy navigation

 Operating System & Performance

• OS: Android 9.0
• Customization: Supports third-party app integration and industry-specific customization

 Audio & Video

• Audio: HD voice with built-in 2W speaker and Acoustic Echo Canceller (AEC)
• Video Decoding: Supports up to 1080p @30fps; H.264 and optional H.265 codecs

 Connectivity

• Ethernet: 1 × 10/100 Mbps RJ45 port with PoE support (802.3af)
• Wi-Fi: Dual-band 2.4 GHz and 5 GHz
• Interfaces:
  • 8 × alarm input interfaces
  • 1 × short circuit output
  • 1 × short circuit input
  • 1 × RS485 (reserved)
  • 1 × embedded relay

 Power & Installation

• Power Supply: 12V/1A DC adapter or PoE
• Power Consumption:
  • PoE: 2.83–7.64W
  • Adapter: 2.46–6.51W
• Installation: Wall-mounted or desktop setup

 Physical Characteristics

• Dimensions: Approximately 177.3 × 114 × 22.6 mm (6.98 × 4.49 × 0.89 inches)
• Material: ABS plastic panel
• Operating Temperature: -10°C to 45°C
• Operating Humidity: 10% to 90% (non-condensing)

The Fanvil i505W is ideal for applications in residential communities, villas, office buildings, and more, providing a secure and convenient communication solution.
