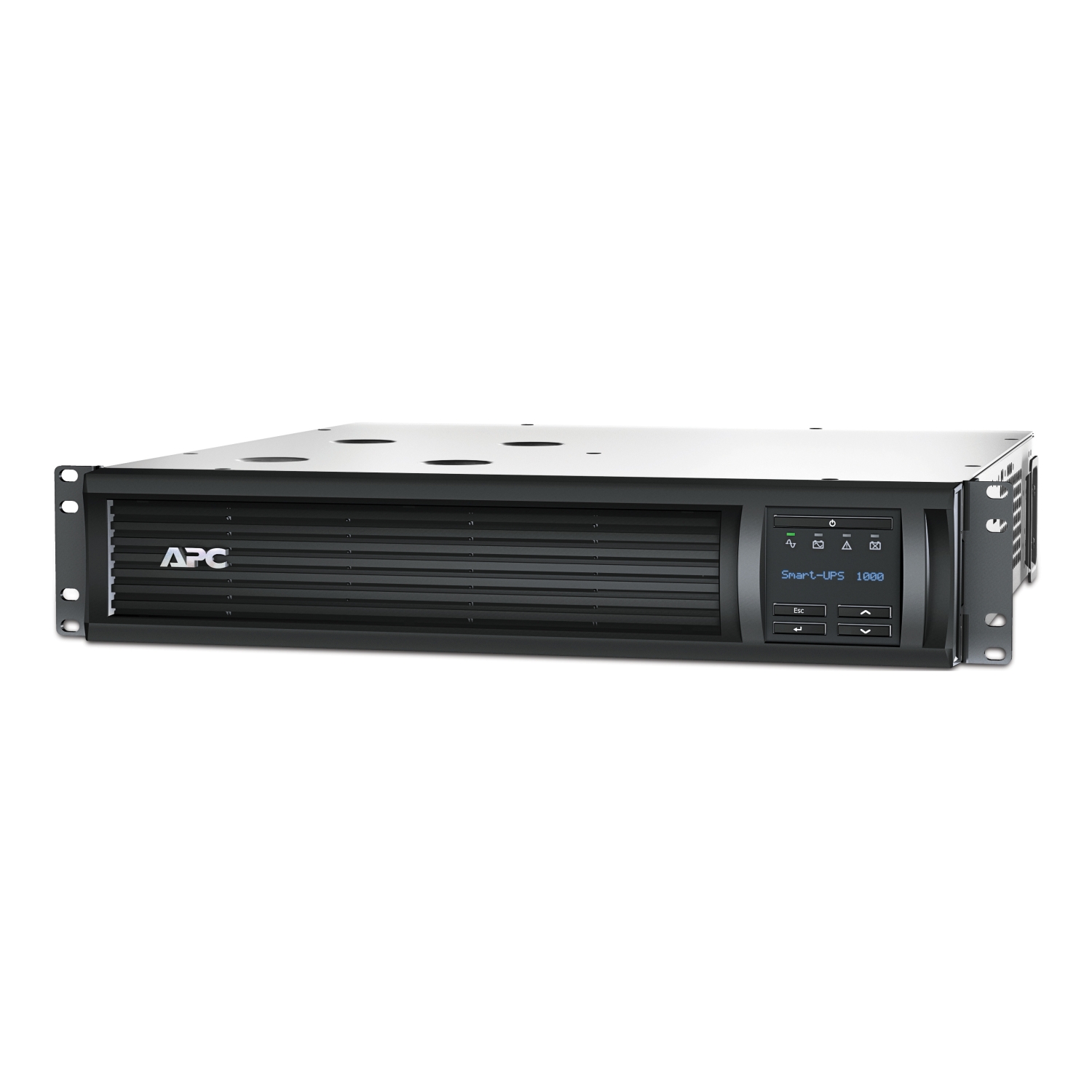

APC Smart-UPS C 1000VA LCD RM 2U 230V WITH SMART CONNECT Rackmount (SMC1000I-2UC)
KSh 100,000.00 (EX.Vat)
Key Features
The APC Smart-UPS SMT1000RMI2UC offers a range of features designed to provide reliable and efficient power protection for critical equipment:
- 1000VA/700W Capacity: Delivers ample power to support essential devices such as servers, networking equipment, and sensitive electronics.
- Automatic Voltage Regulation (AVR): Corrects low and high voltage conditions without using the battery, boosting low voltage by up to 30% and trimming high voltage by up to 12%, ensuring stable power delivery.
- Pure Sine Wave Output: Provides clean, consistent power that simulates utility power, maintaining compatibility with sensitive electronics and active PFC servers.
- Intuitive LCD Interface: Offers clear, real-time information on UPS status, including battery health and power usage, with easy navigation for configuration and monitoring.
- SmartConnect Port: Enables cloud-based remote monitoring and management, providing automatic notifications, firmware updates, and advanced support services.
- SmartSlot: Allows for customization of UPS capabilities with additional management cards, enhancing functionality as needed.
- Energy Efficiency: Features a Green Mode that bypasses unused electrical components in good power conditions, achieving high operating efficiency without compromising protection.

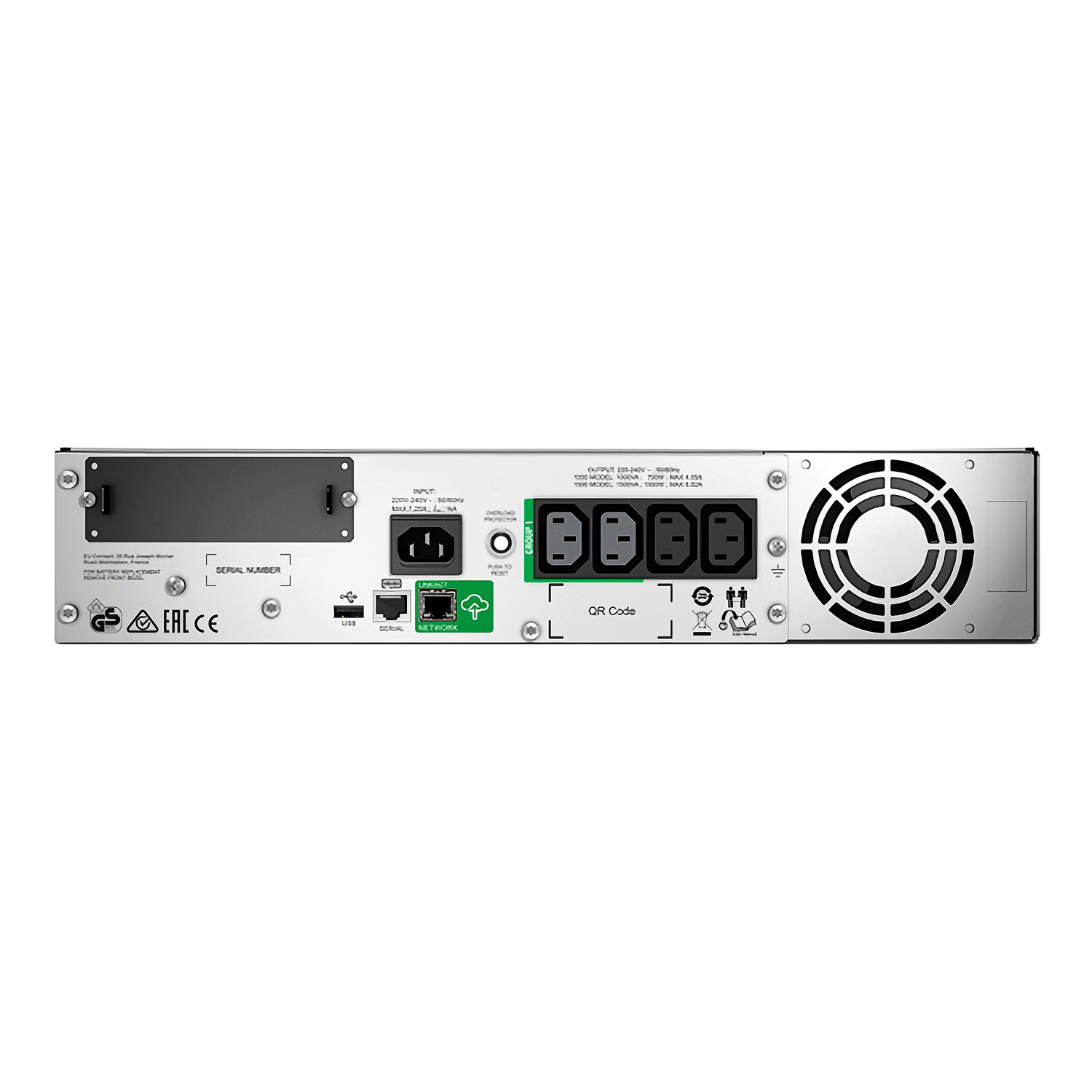

- Multiple IEC Outlets: Equipped with four IEC 320 C13 outlets and two IEC jumper cables, facilitating versatile connectivity options for various devices.
- Surge Protection: Safeguards connected devices from voltage spikes and surges, protecting sensitive electronics from potential damage.
These features collectively ensure that the APC Smart-UPS SMT1000RMI2UC provides robust and efficient power protection, making it suitable for small to medium-sized business environments requiring rack-mounted solutions.
APC Smart-UPS C 1000VA LCD RM 2U 230V WITH SMART CONNECT Rackmount (SMC1000I-2UC)
APC Smart-UPS SMT1000RMI2UC is a 1000VA/700W rack-mountable uninterruptible power supply (UPS) designed to provide reliable power protection for critical equipment. Below are its detailed specifications:
Electrical Specifications:
- Output Power Capacity: 700 Watts / 1000VA
- Nominal Output Voltage: 230V
- Output Voltage Distortion: Less than 5%
- Output Frequency (sync to mains): 50/60Hz ± 3 Hz
- Waveform Type: Sine wave
- Transfer Time: 6 ms typical, 10 ms maximum
- Nominal Input Voltage: 230V
- Input Voltage Range for Main Operations: 160 – 280V
- Input Frequency: 50/60 Hz ± 3 Hz (auto sensing)
- Surge Energy Rating: 459 Joules
Battery Specifications:
- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte; leakproof
- Typical Recharge Time: 3 hours
- Expected Battery Life: 3 to 5 years
- Battery Volt-Amp-Hour Capacity: 168
- Replacement Battery: RBC32
Physical Specifications:
- Rack Height: 2U
- Dimensions (H x W x D): 8.9 cm x 43.2 cm x 49.0 cm
- Net Weight: 20.5 kg
- Color: Black
Environmental Specifications:
- Operating Temperature: 0 to 40 °C
- Operating Relative Humidity: 0 to 95% (non-condensing)
- Operating Elevation: Up to 3,000 meters
- Storage Temperature: -15 to 45 °C
- Storage Relative Humidity: 0 to 95% (non-condensing)
- Storage Elevation: Up to 15,000 meters
- Audible Noise at 1 Meter: 45 dBA
Management and Connectivity:
- Interface Ports: USB, Serial (RJ45), SmartSlot
- Control Panel: Multi-function LCD status and control console
- Audible Alarms: Alarm when on battery; distinctive low battery alarm; configurable delays
- Emergency Power Off (EPO): Yes
- Available SmartSlot™ Interface Quantity: 1
Additional Features:
- Automatic Voltage Regulation (AVR): Boosts low voltage and trims high voltage without using battery power, ensuring stable output.
- Pure Sine Wave Output: Provides clean, consistent power suitable for sensitive electronics and active PFC servers.
- Energy Meter: Offers real-time energy consumption data for monitoring and efficiency purposes.
- Green Mode: Achieves high operating efficiency by bypassing unused electrical components in good power conditions without sacrificing protection.
- Intuitive LCD Interface: Provides clear and accurate information with the ability to configure the UPS locally using easy-to-use navigation keys.
- Predictive Replace Battery Date: Offers a forecasted date for battery replacement, aiding in maintenance planning.
- SmartConnect Port: Enables cloud-based remote monitoring for automatic notifications, firmware updates, and advanced support services.
- SmartSlot: Allows customization of UPS capabilities with management cards.
These specifications highlight the SMT1000RMI2UC’s capability to deliver reliable and efficient power protection, making it suitable for small to medium-sized business environments requiring rack-mounted solutions.
Application
The APC Smart-UPS SMT1000RMI2UC is a versatile uninterruptible power supply (UPS) designed to provide reliable power protection across various applications:
- Servers and Network Devices: Offers backup power and surge protection for servers, routers, switches, and hubs, ensuring continuous network operations during power disturbances.
- Point-of-Sale (POS) Systems: Maintains uninterrupted operation of POS terminals in retail environments, preventing transaction disruptions during power outages.
- VoIP Telephone Systems: Provides consistent power to VoIP systems, preventing call drops and ensuring reliable communication.
- Data Centers and Server Rooms: Protects critical back-office equipment in data centers and server rooms, ensuring data integrity and operational continuity.
These applications demonstrate the SMT1000RMI2UC’s capability to safeguard essential systems against power interruptions and fluctuations.
