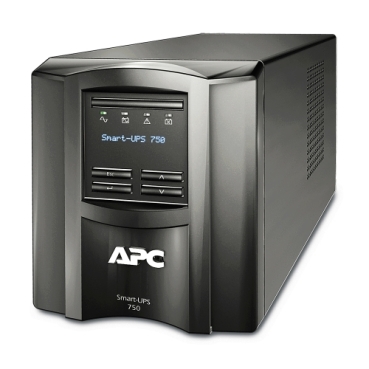

APC Smart-UPS 750VA LCD 230V (SMT750IC)
KSh 54,500.00 (EX.Vat)
Key Features
The APC Smart-UPS SMT750IC offers several key features designed to provide reliable and efficient power protection for your critical equipment:
- 750VA/500W Capacity: Delivers sufficient power to support essential devices like servers, networking equipment, and sensitive electronics.
- Automatic Voltage Regulation (AVR): Corrects low and high voltage conditions without using the battery, boosting low voltage by up to 30% and trimming high voltage by up to 12%, ensuring stable power delivery.
- Pure Sine Wave Output: Provides clean, consistent power that simulates utility power, maintaining compatibility with sensitive electronics and active PFC servers.
- Intuitive LCD Interface: Offers clear, real-time information on UPS status, including battery health and power usage, with easy navigation for configuration and monitoring.
- SmartConnect Port: Enables cloud-based remote monitoring and management, providing automatic notifications, firmware updates, and advanced support services.
- SmartSlot: Allows for customization of UPS capabilities with additional management cards, enhancing functionality as needed.
- Energy Efficiency: Features a Green Mode that bypasses unused electrical components in good power conditions, achieving high operating efficiency without compromising protection.

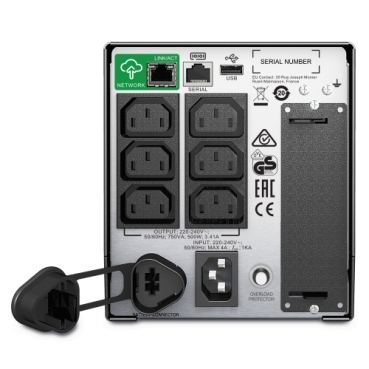

- Multiple IEC Outlets: Equipped with six IEC C13 outlets, facilitating versatile connectivity options for various devices.
- Surge Protection: Safeguards connected devices from voltage spikes and surges, protecting sensitive electronics from potential damage.
These features collectively ensure that the APC Smart-UPS SMT750IC provides robust and efficient power protection, making it suitable for small to medium-sized business environments.
APC Smart-UPS 750VA LCD 230V (SMT750IC)
The APC Smart-UPS SMT750IC is a line-interactive uninterruptible power supply (UPS) designed to provide reliable power protection for critical equipment such as servers, networking devices, and sensitive electronics. Below are its detailed specifications:
Electrical Specifications:
- Output Power Capacity: 500 Watts / 750VA
- Nominal Output Voltage: 230V
- Output Voltage Distortion: Less than 5%
- Output Frequency (sync to mains): 50/60Hz ± 3 Hz
- Waveform Type: Sine wave
- Transfer Time: 6 ms typical, 10 ms maximum
- Nominal Input Voltage: 230V
- Input Voltage Range for Main Operations: 160 – 280V
- Input Frequency: 50/60 Hz ± 3 Hz (auto sensing)
- Surge Energy Rating: 540 Joules
Battery Specifications:
- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte; leakproof
- Typical Recharge Time: 3 hours
- Expected Battery Life: 3 to 5 years
- Battery Volt-Amp-Hour Capacity: 146
- Replacement Battery: RBC48
Physical Specifications:
- Dimensions (H x W x D): 16.1 cm x 13.8 cm x 36.9 cm
- Net Weight: 11.8 kg
- Color: Black
Environmental Specifications:
- Operating Temperature: 0 to 40 °C
- Operating Relative Humidity: 0 to 95% (non-condensing)
- Operating Elevation: Up to 3,048 meters
- Storage Temperature: -15 to 45 °C
- Storage Relative Humidity: 0 to 95% (non-condensing)
- Storage Elevation: Up to 15,240 meters
- Audible Noise at 1 Meter: 40 dBA
Management and Connectivity:
- Interface Ports: SmartSlot, USB
- Control Panel: Multi-function LCD status and control console
- Audible Alarms: Alarm when on battery; distinctive low battery alarm; configurable delays
- Emergency Power Off (EPO): Optional
- Available SmartSlot™ Interface Quantity:
Additional Features:
- Automatic Voltage Regulation (AVR): Boosts low voltage by up to 30% and trims high voltage by up to 12% without using battery power.
- Pure Sine Wave Output: Provides clean, consistent power that simulates utility power to maintain compatibility with sensitive electronics and active PFC servers.
- Energy Meter: Provides actual kilowatt hours of usage for energy-conscious users.
- Green Mode: Achieves high operating efficiency by bypassing unused electrical components in good power conditions without sacrificing protection.
- Intuitive LCD Interface: Offers clear and accurate information with the ability to configure the UPS locally using easy-to-use navigation keys.
- Predictive Replace Battery Date: Provides the month and year when battery replacement is recommended to aid in long-term maintenance planning.
- SmartConnect Port: Enables cloud-based remote monitoring for automatic notifications, firmware updates, and advanced support services.
- SmartSlot: Allows customization of UPS capabilities with management cards.
These specifications highlight the SMT750IC’s capability to deliver reliable and efficient power protection, making it suitable for small to medium-sized business environments.
Application
The APC Smart-UPS SMT750IC is engineered to deliver reliable power protection across various applications, ensuring the safety and continuity of critical equipment. Key use cases include:
- Servers and Network Devices: Provides backup power and surge protection for servers, routers, switches, and hubs, maintaining network integrity during power disturbances.
- Point-of-Sale (POS) Systems: Ensures uninterrupted operation of POS terminals in retail environments, preventing transaction disruptions during power outages.
- VoIP Telephone Systems: Maintains continuous power to VoIP systems, preventing call drops and ensuring consistent communication.
- Retail and Bank Back Offices: Protects critical back-office equipment in retail and banking sectors, ensuring data integrity and operational continuity.
- Automated Teller Machines (ATMs): Provides reliable power backup for ATMs, ensuring consistent service availability and security.
These applications highlight the SMT750IC’s versatility in safeguarding essential systems against power interruptions and fluctuations.
