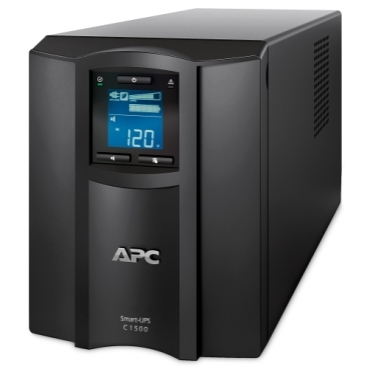

APC Smart-UPS C 1500VA LCD 230V with SmartConnect (SMC1500IC)

Overview

The APC Smart-UPS C 1500VA LCD 230V with SmartConnect (SMC1500IC) provides intelligent and efficient network power protection. It is ideal for applications like servers, routers, switches, point-of-sale systems, and other network devices. This model supports scalable runtime and cloud-enabled monitoring through SmartConnect.

Key Specifications

Electrical

• Rated Power: 1500 VA / 900 W
• Input Voltage: 230V (also supports 220V and 240V)
• Output Voltage: 230V (also supports 220V and 240V)
• Input Connection Type: IEC 320 C14
• Output Connection Type: 8 IEC 320 C13, 2 IEC Jumpers
• Input Voltage Range: 170–300 V (adjustable); 180–287 V
• Network Frequency: 50/60 Hz ± 3 Hz auto-sensing
• Output Frequency: 50/60 Hz ± 3 Hz sync to mains
• Surge Protection: Surge energy rate of 459 J
• Harmonic Distortion: Less than 5%
• Transfer Time: 6 ms typical, 10 ms maximum
• UPS Type: Line Interactive
• Wave Type: Sine wave
• Battery Voltage: 24 V

Battery & Runtime

• Battery Type: Lead-acid battery
• Battery Life: 3–5 years
• Battery Recharge Time: 3 hours
• Replacement Battery: RBC6
• Battery Charger Power: 73 W rated
• Extended Runtime: 0
• Battery Slots: No additional battery slots

Physical Characteristics

• Color: Black
• Dimensions (H x W x D): 21.9 cm x 17.1 cm x 43.9 cm
• Net Weight: 20.1 kg
• Mounting: Front mounting preference; not rack-mountable
• Mounting Mode: Not rack-mountable
• Noise Level: 45 dBA
• Heat Dissipation: 135 Btu/h

Environmental Specifications

• Operating Temperature: 0–40 °C
• Storage Temperature: -15–45 °C
• Relative Humidity: 0–95% (non-condensing)
• Operating Altitude: 0–10,000 ft
• Storage Altitude: 0–15,240 m

Communications & Management

• Control Panel: Multifunction LCD status and control console

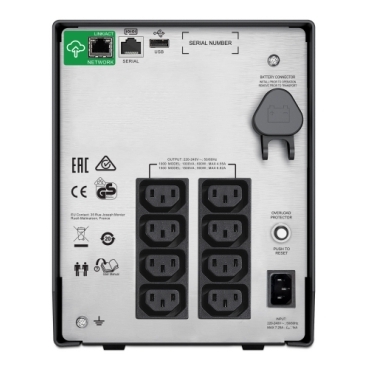

• Communication Ports: SmartConnect Ethernet port for cloud monitoring (feature availability varies by terms of use)
• Additional Ports: USB and Serial communication ports
• Alarm: Distinctive low battery and overload alarms, configurable delays

Certifications

• Certifications: C-Ti, CE, GOST, VDE, UK PSTI
• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Additional Features

• SmartConnect: Provides cloud-enabled monitoring with a SmartConnect Ethernet port
• Surge Suppression: Full-time multi-pole noise filtering, IEEE surge let-through, zero clamping
• LCD Display: Provides detailed UPS status information, including battery levels, input/output voltage, and more

Packaging Information

• Package Dimensions (H x W x D): 33 cm x 59 cm x 33 cm
• Package Weight: 22.64 kg
• Number of Units in Package: 1

This APC Smart-UPS C 1500VA LCD 230V with SmartConnect is designed for high-performance, reliable power protection in environments where uptime is critical. It offers advanced features like cloud monitoring, sine wave output, and efficient power management, making it ideal for businesses, data centers, and remote network devices.

Frequently asked questions (FAQs) for the APC Smart-UPS C 1500VA LCD 230V with SmartConnect (SMC1500IC)

FAQs for APC Smart-UPS C 1500VA LCD 230V with SmartConnect

1. What devices can the APC Smart-UPS C 1500VA support?

The APC Smart-UPS C 1500VA is ideal for protecting devices such as servers, routers, switches, hubs, point-of-sale systems, and other critical network equipment.

2. What is the battery life of the APC Smart-UPS C 1500VA?

The UPS uses lead-acid batteries with a typical lifespan of 3 to 5 years, depending on environmental conditions and usage.

3. How long does it take to recharge the battery?

The battery recharge time for the APC Smart-UPS C 1500VA is approximately 3 hours.

4. What is the surge protection rating of the APC Smart-UPS C 1500VA?

The APC Smart-UPS C 1500VA offers 459 joules of surge energy protection, which helps safeguard connected equipment from power surges and spikes.

5. Can I monitor my UPS remotely?

Yes, the UPS is equipped with SmartConnect, which allows for remote monitoring of power usage and status through the cloud. The feature availability varies by the terms of use.

6. How long can the UPS power devices during a power outage?

The runtime varies depending on the load connected to the UPS. For example, with a full load (900W), the runtime will be significantly shorter than with half load (450W). You can view the detailed runtime based on your load on the APC UPS runtime graph.

7. Can this UPS be mounted in a rack?

The APC Smart-UPS C 1500VA is not rack-mountable but is designed for tower placement. It can be used in environments that require a tower configuration.

8. What communication ports are available on this UPS?

The UPS features SmartConnect Ethernet port, USB, and Serial communication ports for easy connectivity and monitoring.

9. What is the output waveform type of the APC Smart-UPS C 1500VA?

The APC Smart-UPS C 1500VA delivers a pure sine wave output, ensuring compatibility with sensitive equipment that requires clean power.

10. What certifications does the APC Smart-UPS C 1500VA have?

This UPS is certified under various international standards, including C-Ti, CE, GOST, VDE, and UK PSTI, as well as meeting EN/IEC 62040-1:2019/A11:2021 and other relevant standards.

11. Is the APC Smart-UPS C 1500VA compatible with other APC products?

Yes, the APC Smart-UPS C 1500VA is part of the Smart-UPS series, which is compatible with other APC Smart-UPS and SmartConnect-enabled devices for a unified power management experience.

12. How do I replace the battery?

The battery replacement procedure is outlined in the user manual. The APCRBC6 replacement battery can be purchased directly from APC or authorized dealers.

13. What is the warranty on the APC Smart-UPS C 1500VA?

The APC Smart-UPS C 1500VA typically comes with a 2-year warranty (subject to local conditions and the seller’s policy). For detailed warranty information, please check the product documentation or the manufacturer’s website.
