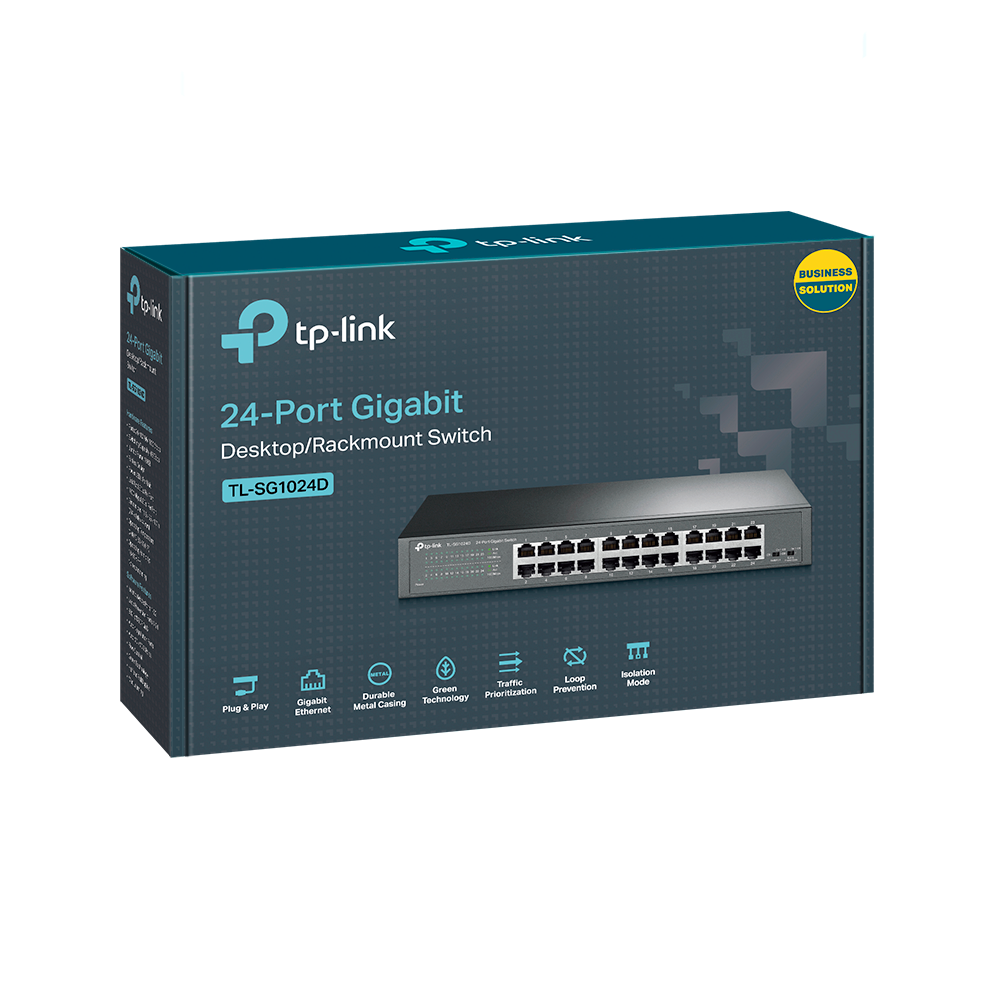

TP-Link 24-Port Gigabit Rackmount Switch TL-SG1024D

Name: TP-Link 24-Port Gigabit Rackmount Switch TL-SG1024D
SKU: 9962
Availability: InStock

KSh 11,000.00 (EX.Vat)

Key Features

The TP-Link TL-SG1024D is a 24-Port Gigabit Desktop/Rackmount Switch designed to enhance wired network performance with high-speed connectivity and energy-efficient features. Its key features include:

24 Gigabit Ethernet Ports: Equipped with 24 auto-negotiation RJ45 ports supporting 10/100/1000Mbps speeds and Auto MDI/MDIX, eliminating the need for crossover cables and simplifying network setup.
Energy-Efficient Technology: Incorporates innovative energy-efficient technologies that adjust power consumption according to link status and cable length, reducing power usage by up to 20% and minimizing environmental impact.
High Performance: Features a non-blocking switching architecture with a 48 Gbps switching capacity, ensuring maximum throughput by forwarding and filtering packets at full wire-speed.
Jumbo Frame Support: Supports Jumbo frames up to 10,000 bytes, enhancing performance for large data transfers.
IEEE 802.3x Flow Control: Supports flow control for full-duplex mode and backpressure for half-duplex mode, providing reliable data transfer and helping to prevent data loss during transmission.
Robust Design: Housed in a standard 13-inch steel case, the switch is both desktop and rack-mountable, offering flexibility in installation and ensuring durability for various networking environments.
Plug and Play: Requires no configuration, allowing for easy setup and immediate use, making it suitable for various networking scenarios, including homes, small businesses, and workgroups.

These features make the TL-SG1024D a reliable and efficient choice for expanding network capacity while maintaining energy efficiency and high performance.

Category: Networking Switches

Description
Reviews (0)

TP-Link 24-Port Gigabit Rackmount Switch TL-SG1024D

Hardware Features:

Ports:
- 24× 10/100/1000Mbps Auto-Negotiation RJ45 ports, supporting Auto MDI/MDIX.
Standards and Protocols:
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x.
Switching Capacity:
- 48 Gbps.
MAC Address Table:
- 8K entries.
Jumbo Frame Support:
- Supports Jumbo frames up to 10,000 bytes.
Flow Control:
- IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode.
Housing:
- Rack-mountable steel case with a compact design.
Fanless Design:
- Ensures quiet operation.

Performance Features:

Data Transfer Rates:
- Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex).
- Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex).
- Gigabit Ethernet: 1000Mbps (Half Duplex), 2000Mbps (Full Duplex).
Network Media (Cable):
- 10Base-T: UTP category 3, 4, 5 cable (maximum 100m).
- EIA/TIA-568 100Ω STP (maximum 100m).
- 100Base-TX: UTP category 5, 5e cable (maximum 100m).
- EIA/TIA-568 100Ω STP (maximum 100m).
- 1000Base-T: UTP category 5e, 6 cable (maximum 100m).

Power Supply:

Internal Power Supply:
- 100-240VAC, 50/60Hz.
Power Consumption:
- Maximum of 13.62W (220V/50Hz).

Environmental Specifications:

Operating Temperature:
- 0°C to 40°C (32°F to 104°F).
Storage Temperature:
- -40°C to 70°C (-40°F to 158°F).
Operating Humidity:
- 10% to 90% RH non-condensing.
Storage Humidity:
- 5% to 90% RH non-condensing.

Certifications:

FCC, CE, RoHS.

Package Contents:

TL-SG1024D 24-Port Gigabit Desktop/Rackmount Switch.
Power Cord.
Rackmount Kit.
User Guide.

The TL-SG1024D is fully compatible with networked devices such as computers, printers, webcams, and IPTVs. Its plug-and-play design requires no configuration, making it suitable for various networking scenarios, including homes, small businesses, and workgroups. Additionally, the switch incorporates energy-efficient technology to save power and reduce environmental impact.
