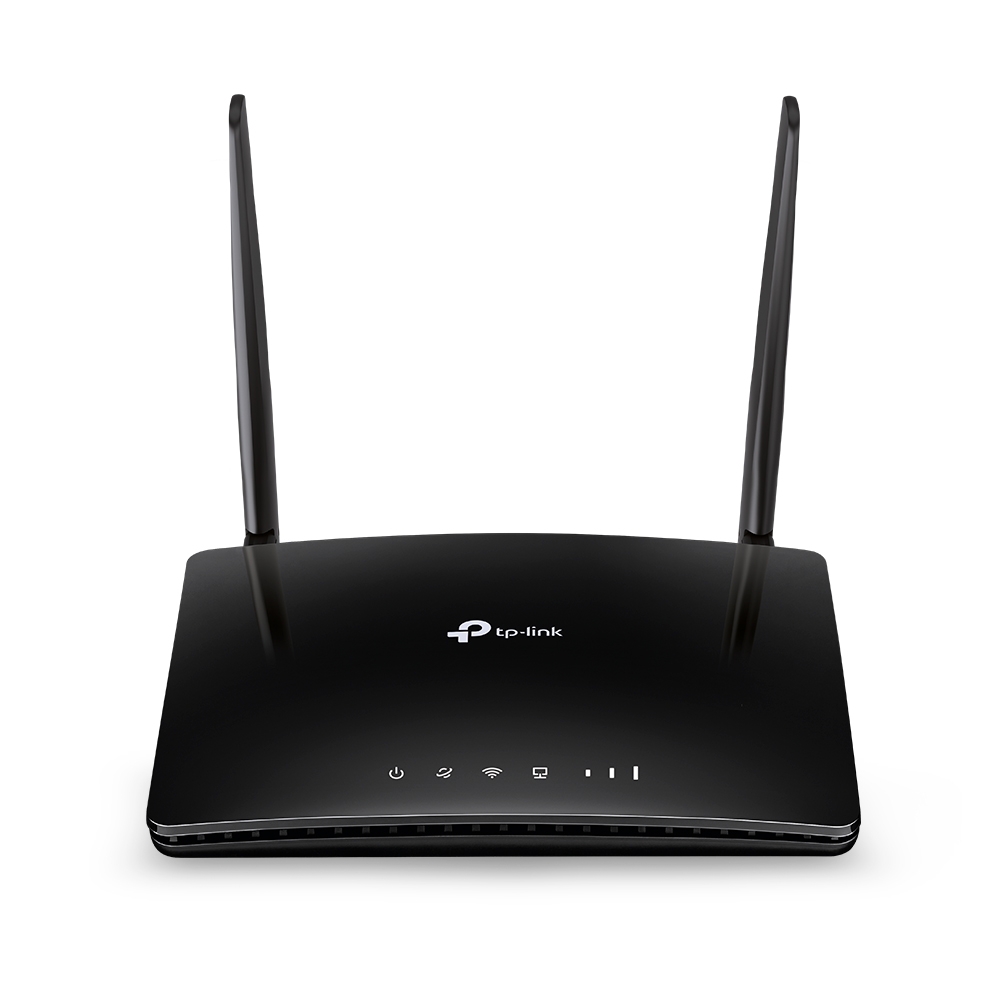

TP-Link Archer MR200 AC750 Wireless Dual Band 4G LTE Router

The TP-Link Archer MR200 is an AC750 Wireless Dual Band 4G LTE Router designed to provide high-speed internet access by leveraging 4G LTE networks. Below are its detailed specifications:​

Hardware Features:

• Interfaces:

  • Three 10/100 Mbps LAN Ports​

  • One 10/100 Mbps LAN/WAN Port​

  • One Micro SIM Card Slot​

• Buttons:

  • WPS/Reset Button​

  • Wi-Fi On/Off Button​

  • Power On/Off Button​

• External Power Supply:

  • 12V/1A​

• Dimensions (W x D x H):

  • 7.95 × 5.55 × 1.32 inches (202 × 141 × 33.6 mm)​

• Antenna Type:

  • Two detachable external 4G LTE antennas​

  • Three internal Wi-Fi antennas​

Wireless Features:

• Wireless Standards:

  • IEEE 802.11ac/n/a for 5 GHz​

  • IEEE 802.11b/g/n for 2.4 GHz

• Frequency:

  • 2.4 GHz and 5 GHz​

• Signal Rate:

  • 300 Mbps at 2.4 GHz​

  • 433 Mbps at 5 GHz​

• Wireless Functions:

  • Enable/Disable Wireless Radio​

  • WDS Bridge​

  • WMM​

  • Wireless Statistics​

• Wireless Security:

  • 64/128-bit WEP​

  • WPA/WPA2​

  • WPA-PSK/WPA2-PSK encryptions​

Network Types Supported:

• 4G: FDD-LTE Cat4 with download speeds up to 150 Mbps and upload speeds up to 50 Mbps. Supported bands include:​

  • 800 MHz (Band 20)​

  • 900 MHz (Band 8)​

  • 1800 MHz (Band 3)​

  • 2100 MHz (Band 1)​

  • 2600 MHz (Band 7)​

• 3G: DC-HSPA+/HSPA+/HSPA/UMTS with supported bands:​

  • 900 MHz​

  • 2100 MHz​

• 2G: EDGE/GPRS/GSM with supported bands:​

  • 850/900/1800/1900 MHz​

Additional Features:

• Plug and Play: With an integrated 4G LTE modem and a built-in SIM card slot, simply insert a SIM card and power on the router to establish a fast, stable Wi-Fi connection.

• Dual Band Wi-Fi: Creates simultaneous 2.4 GHz and 5 GHz Wi-Fi networks, providing a total bandwidth of up to 733 Mbps. This setup allows for optimal performance by minimizing interference and optimizing bandwidth-intensive tasks. ​

• Multiple Device Support: Capable of sharing a 3G/4G connection with up to 64 wireless devices simultaneously, making it suitable for both home and small business environments.

• Versatile Deployment: Ideal for use in various settings such as remote areas, vacation homes, or temporary locations where wired internet may not be available. ​

• OneMesh™ Support: Compatible with TP-Link OneMesh products to create a flexible and cost-effective mesh network with a single Wi-Fi name for seamless whole-home coverage. ​

• Advanced Management Tools: Includes features like Parental Controls to manage internet access for children, Quality of Service (QoS) to prioritize devices for faster performance, and Guest Network access to provide secure Wi-Fi for visitors.

• WAN Connection Flexibility: Equipped with a WAN/LAN port, allowing it to function as a traditional wireless router compatible with cable, fiber, and DSL modems. Additionally, the 3G/4G connection can serve as a backup to ensure a reliable internet connection. ​

These specifications and features make the TP-Link Archer MR200 a versatile and reliable choice for accessing high-speed internet via 4G LTE networks, offering flexibility and convenience in various scenarios.
