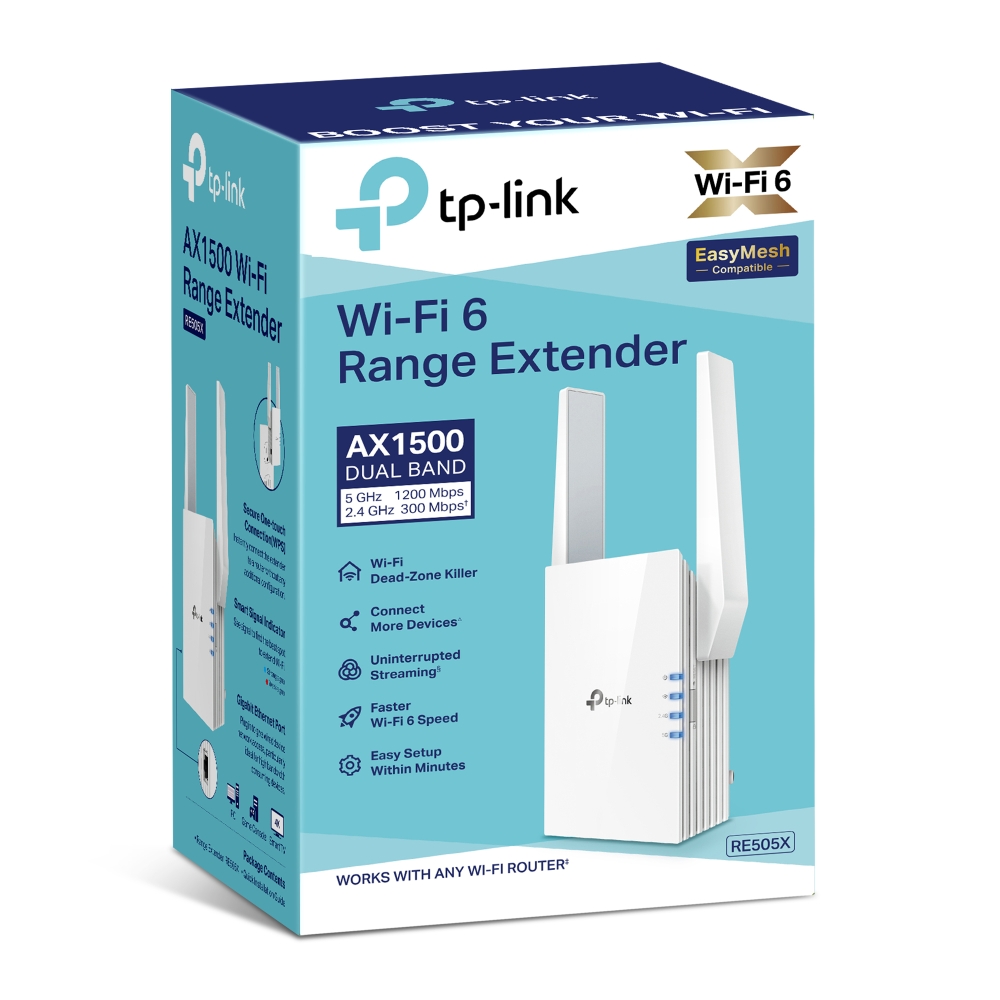

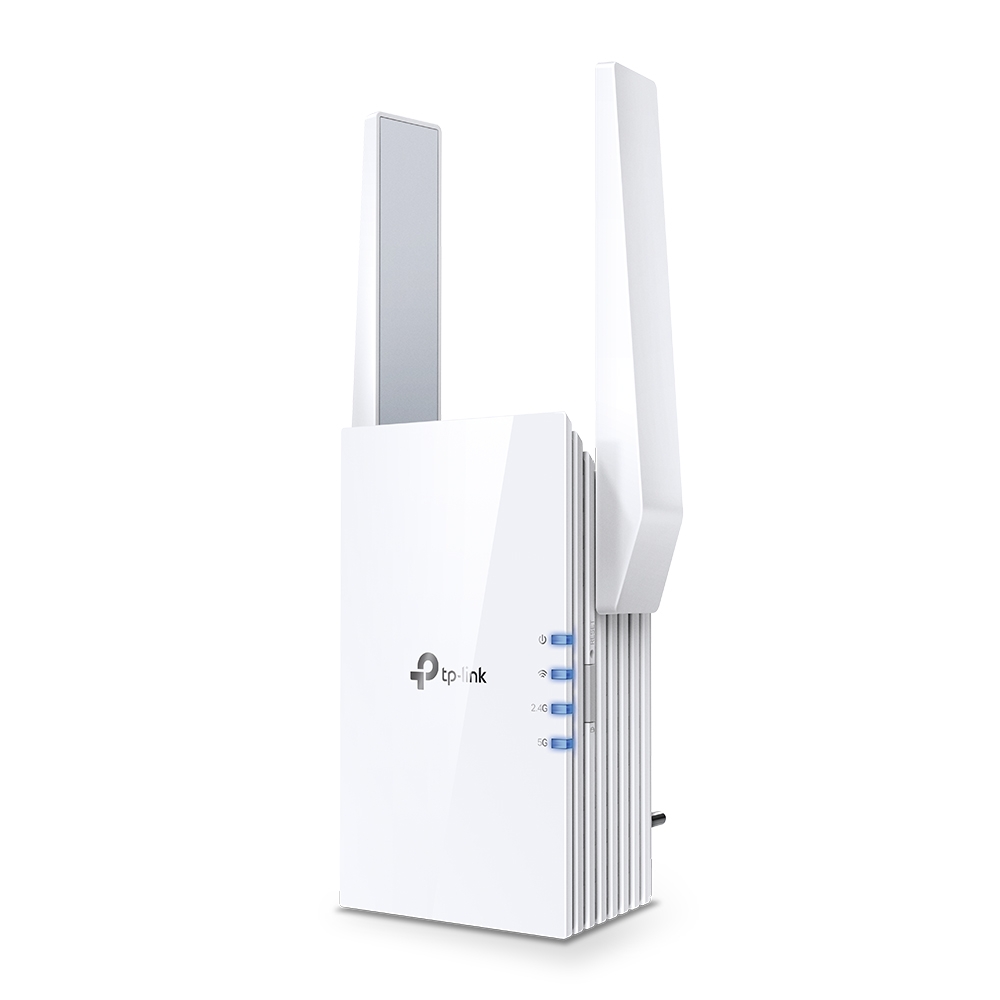

TP-Link AX1500 Wi-Fi 6 Range Extender (RE505X)

The TP-Link RE505X is an AX1500 Wi-Fi 6 Range Extender designed to enhance and expand your existing wireless network by eliminating dead zones and providing robust dual-band coverage. Below are its detailed specifications:​

Hardware Features:

• Plug Type: US.​

• Standards and Protocols: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz.​

• Interface: 1× Gigabit Ethernet Port (RJ45).​

• Buttons: WPS Button, Reset Button.​

• Power Consumption: 10W.​

• Dimensions (W × D × H): 2.9 × 1.8 × 4.9 inches (74.0 × 46 × 124.8 mm).

• Antenna: 2 external high-gain antennas.​

Wireless Features:

• Frequency: 2.4 GHz and 5 GHz.​

• Signal Rate:

  • 2.4 GHz: Up to 300 Mbps.​

  • 5 GHz: Up to 1,200 Mbps.​

• Reception Sensitivity:

  • 5 GHz:

    • 11a 6 Mbps: -93 dBm.

    • 11a 54 Mbps: -75 dBm.

    • 11ac HT20 MCS0: -92 dBm.

    • 11ac HT20 MCS8: -70 dBm.

    • 11ac HT40 MCS0: -90 dBm.

    • 11ac HT40 MCS9: -66 dBm.

    • 11ac HT80 MCS0: -87 dBm.

    • 11ac HT80 MCS9: -62 dBm.

  • 2.4 GHz:

    • 11g 54 Mbps: -77 dBm.

    • 11n HT20 MCS7: -75 dBm.

    • 11n HT40 MCS7: -72 dBm.

• Wireless Modes: Range Extender, Access Point.​

• Wireless Functions:

  • Enable/Disable Wireless Radio.​

  • Wireless Statistics.​

• Wireless Security: 64/128-bit WEP, WPA/WPA2-PSK encryptions.​

• Transmission Power:

  • CE: 2.4 GHz ≤20 dBm, 5 GHz ≤30 dBm.​

Key Features:

• Wi-Fi 6 Technology: Delivers faster speeds, increased capacity, and reduced network congestion for smoother streaming, gaming, and downloading experiences.​

• Dual-Band Speeds: Provides combined speeds of up to 1.5 Gbps—300 Mbps on the 2.4 GHz band and 1,200 Mbps on the 5 GHz band—ensuring a stable and fast wireless experience.​

• Gigabit Ethernet Port: Offers high-speed wired connections for devices like gaming consoles, smart TVs, and PCs, ensuring optimal performance.​

• TP-Link OneMesh™ Technology: Creates a mesh network by connecting to a OneMesh-compatible router, providing seamless whole-home coverage with a single Wi-Fi name.​

• Intelligent Signal Indicator: Assists in finding the optimal placement for the extender by displaying the signal strength received from the main router.​

• Access Point Mode: Transforms a wired internet connection into a dual-band wireless access point, enhancing your wired network with Wi-Fi capability.​

• Easy Setup and Management: Compatible with the TP-Link Tether app, allowing for straightforward setup and management via any Android or iOS device.​

• Universal Compatibility: Works with all Wi-Fi-enabled devices and routers or access points, including new AX phones, laptops, and other devices.​

These features make the TP-Link RE505X a versatile and efficient solution for extending Wi-Fi coverage and improving network performance in your home or office.
