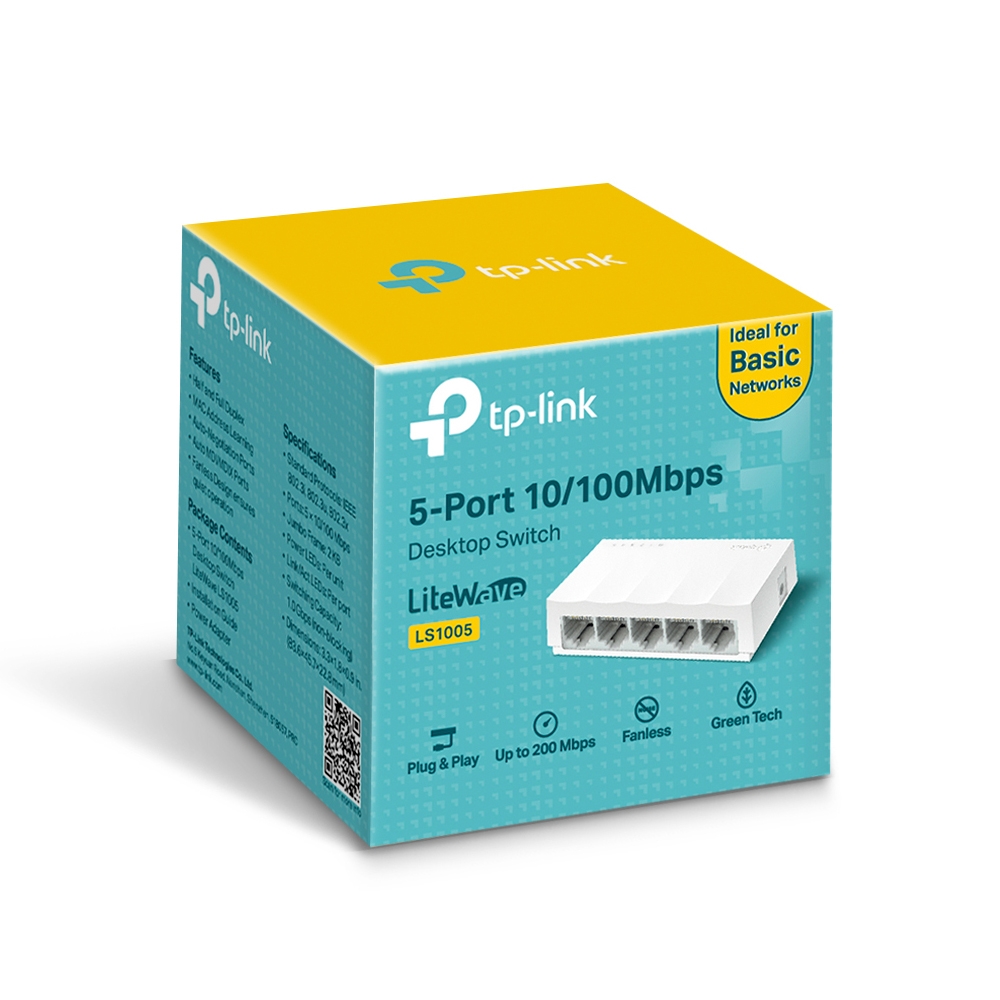

Tp-link LS1005 5-Port 10/100Mbps Desktop Network Switch

Name: Tp-link LS1005 5-Port 10/100Mbps Desktop Network Switch
SKU: 8189
Availability: InStock

KSh 1,300.00 (EX.Vat)

Key Features

The TP-Link LS1005 is a 5-Port 10/100Mbps Desktop Switch designed to expand your wired network efficiently. Its key features include:

5× 10/100Mbps Auto-Negotiation RJ45 Ports: Each port supports Auto-MDI/MDIX, eliminating the need for crossover cables and ensuring seamless connectivity with various devices.
Green Ethernet Technology: Incorporates energy-efficient technology that adjusts power consumption based on link status and cable length, reducing energy usage and minimizing environmental impact.
IEEE 802.3X Flow Control: Provides reliable data transfer by managing data flow to prevent packet loss during transmission.
Plug-and-Play Design: Offers hassle-free setup with no configuration required, allowing for immediate deployment in your network.
Fanless Design: Ensures quiet operation, making it suitable for noise-sensitive environments.
Compact Plastic Casing: Features a durable, compact design that fits easily on a desktop, optimizing space utilization.

These features make the LS1005 an ideal choice for expanding wired networks in various settings, including homes, small businesses, school dormitories, and surveillance systems.

Category: Networking Switches

Description
Reviews (0)

Tp-link LS1005 5-Port 10/100Mbps Desktop Network Switch.

The TP-Link LS1005 is a 5-Port 10/100Mbps Desktop Switch designed to expand your wired network efficiently. Below are its detailed specifications:

Hardware Features:

Ports:
- 5× 10/100Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX.
Standards and Protocols:
- IEEE 802.3i/802.3u/802.3x.
Switching Capacity:
- 1 Gbps.
MAC Address Table:
- 2K entries.
Forwarding Mode:
- Store and forward.
Flow Control:
- IEEE 802.3X flow control for full-duplex mode and backpressure for half-duplex mode.
Housing:
- Plastic casing with a compact desktop design.
Fanless Design:
- Ensures quiet operation.

Performance Features:

Data Transfer Rates:
- Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex).
- Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex).
Network Media (Cable):
- 10Base-T: UTP category 3, 4, 5 cable (maximum 100m).
- EIA/TIA-568 100Ω STP (maximum 100m).
- 100Base-TX: UTP category 5, 5e cable (maximum 100m).
- EIA/TIA-568 100Ω STP (maximum 100m).

Power Supply:

External Power Adapter:
- Output: 5VDC / 0.6A.

Environmental Specifications:

Operating Temperature:
- 0°C to 40°C (32°F to 104°F).
Storage Temperature:
- -40°C to 70°C (-40°F to 158°F).
Operating Humidity:
- 10% to 90% RH non-condensing.
Storage Humidity:
- 5% to 90% RH non-condensing.

Certifications:

CE, FCC, RoHS.

Package Contents:

LS1005 5-Port 10/100Mbps Desktop Switch.
Power Adapter.
Installation Guide.

The LS1005 is fully compatible with networked devices such as computers, printers, webcams, and IPTVs. Its plug-and-play design requires no configuration, making it suitable for various networking scenarios, including school dormitories, surveillance, homes, and small businesses. Additionally, the switch incorporates energy-efficient technology to save power and reduce environmental impact.
