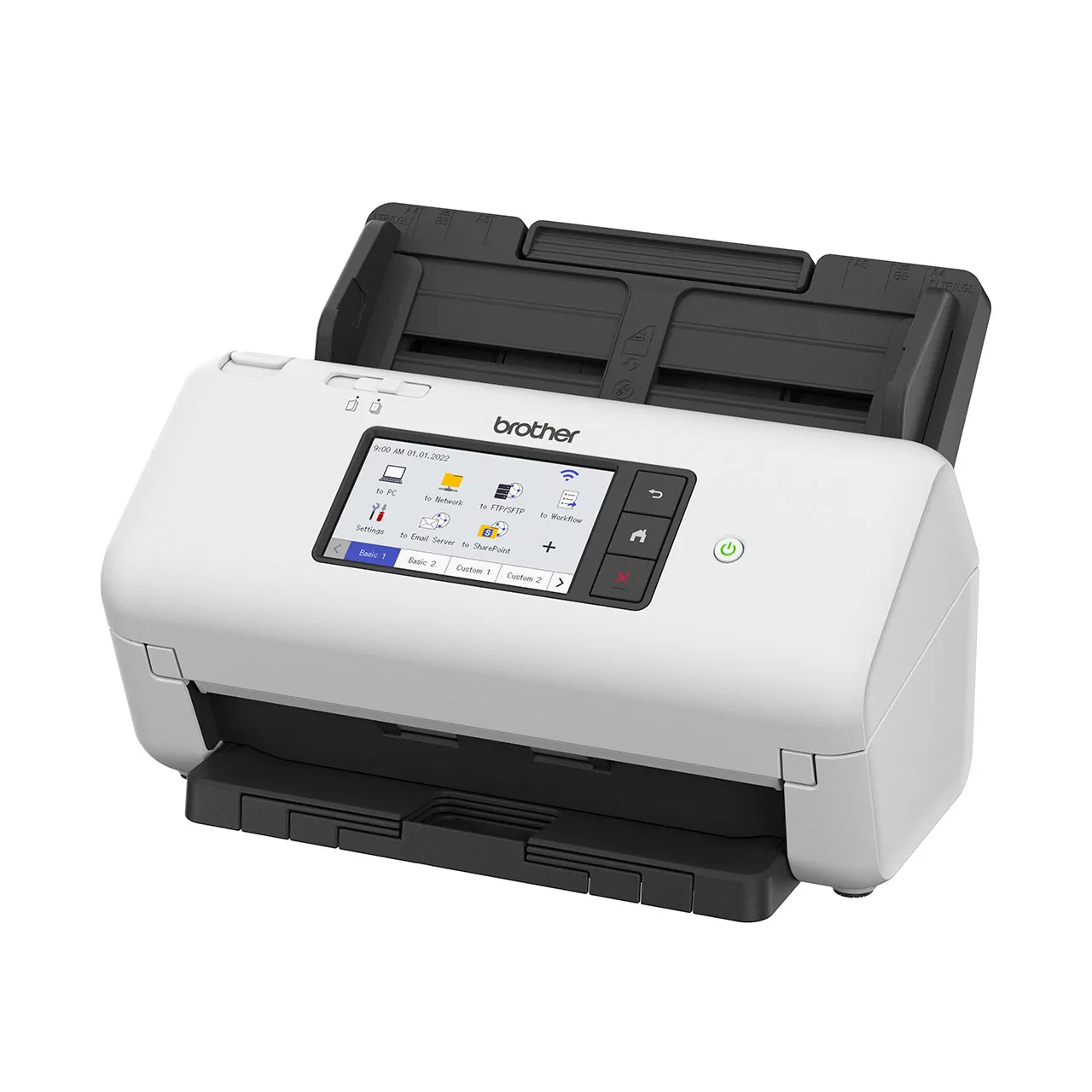

Brother ADS-4700W Wireless Document Scanner

General Features

• Model: Brother ADS-4700W
• Form Factor: Sheet-fed desktop document scanner
• Scanner Type: Dual CIS (Contact Image Sensor) with LED Array Light Source
• Control Panel: 10.9 cm (4.3″) Color Touchscreen Display
• Memory: 512MB

Scanning Performance

• Scan Speed (A4):
  • Single-sided: Up to 40 pages per minute (ppm)
  • Double-sided: Up to 80 images per minute (ipm)
• Daily Duty Cycle: Up to 6,000 pages
• Optical Resolution: Up to 600 x 600 dpi
• Interpolated Resolution: Up to 1200 x 1200 dpi
• Color Depth:
  • Internal: 48-bit
  • External: 24-bit
• Grayscale Levels: 256 levels (8-bit)
• Wake-up Time: Approx. 1 second

Media Handling

• Automatic Document Feeder (ADF):
  • Capacity: 80 sheets
• Media Types Supported:
  • Plain paper, thin paper, thick paper, recycled paper, business cards, plastic cards
• Media Sizes:
  • Width: 50.8mm to 215.9mm
  • Height: 50.8mm to 355.6mm
  • Long Paper: Up to 5000mm
• Paper Weight: 25 – 413 gsm
• Plastic Card Thickness:
  • Embossed: Up to 1.32mm
  • Non-embossed: Up to 1.10mm

File Formats Supported

• Scan File Formats:
  • PDF (Single, Multi, PDF/A-1b)
  • JPEG
  • TIFF (Single, Multi-page)

Connectivity Options

• Interfaces:
  • USB 3.0 SuperSpeed
  • USB Host (Scan directly to USB drives)
  • Ethernet (Network)
  • Wi-Fi (802.11b/g/n)
  • Wi-Fi Direct
• Mobile Scanning: Compatible with Brother Mobile Connect

Advanced Features

• Duplex Scanning: Scans both sides of a document simultaneously.
• Touchscreen Display: 10.9 cm color display for intuitive control and customization.
• Barcode Detection: Organize and classify documents efficiently.
• Advanced Image Processing:
  • Auto Deskew
  • Detect End of Page
  • Auto Image Rotation
  • Edge Fill and Tear Fill
  • Blank Page Removal
  • Vertical Streak Reduction
  • Moiré Reduction
  • Noise Reduction
  • Punch Hole Removal
  • Remove Ruled Lines

Software

• Included Software:
  • Brother ScanEssentials
  • Kofax PaperPort & Power PDF
  • NewSoft Presto! BizCard
• Supported Drivers:
  • TWAIN, WIA, ICA, SANE
• Compatible Operating Systems:
  • Windows 7 SP1 and above
  • macOS 10.14 and above
  • Linux (via SANE)

Dimensions and Weight

• Scanner Dimensions (WxDxH): 299.5 x 215.9 x 190.5 mm
• Weight: 2.7 kg

Power and Environmental

• Power Requirements:
  • AC: 100-240V, 50/60 Hz
  • DC: 24V, 1.9A
• Power Consumption:
  • Scanning: 23W
  • Ready Mode: 5.4W
  • Sleep Mode: 1.4W
  • Power Off: 0.1W
• Operating Environment:
  • Temperature: 5°C to 35°C (41°F to 95°F)
  • Humidity: 20% to 80%

Accessories and Consumables

• In the Box:
  • ADS-4700W Scanner
  • Power Supply Cord
  • AC Adapter
  • USB Cable
  • Quick Setup Guide
  • Product Safety Guide
• Optional Accessories:
  • A3 Carrier Sheet (CS-A3301) – Up to 500 uses
  • Roller Kit (PRK-A3001) – Supports 100,000 sheets

Key Highlights

• Fast and versatile scanning for a variety of media, including plastic cards and long documents.
• Comprehensive connectivity options, including Wi-Fi and Ethernet.
• Intuitive operation with a 10.9 cm touchscreen display.
• Advanced workflow optimization through bundled software like Kofax and Brother ScanEssentials.
• Ideal for high-volume business environments with its 6,000-page daily duty cycle.
